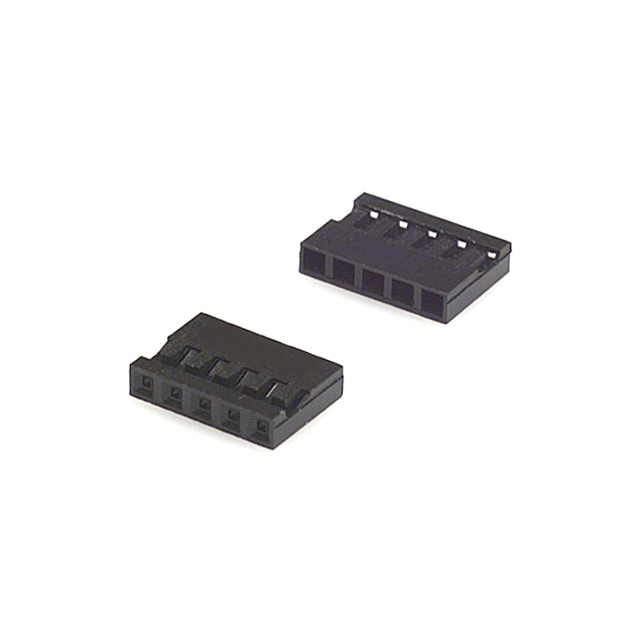

A4B-5S-2C
ActiveHirose Electric USA, Inc.
CONN RCPT HSG 5POS 2.00MM
Deep-Dive with AI
Search across all available documentation for this part.
A4B-5S-2C
ActiveHirose Electric USA, Inc.
CONN RCPT HSG 5POS 2.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A4B-5S-2C |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.45 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.36 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.33 | |||
| 300 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.23 | |||
| 2500 | $ 0.21 | |||
Description
General part information
A4B-5S-2 Series
5 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
