242A27020X

Obsolete

Amphenol CONEC

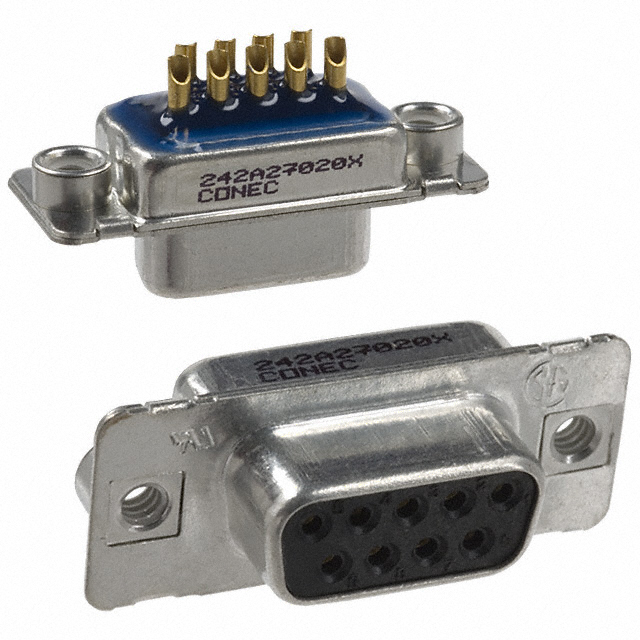

CONN D-SUB RCPT 9POS SLDR CUP

Search across all available documentation for this part.

Obsolete

Amphenol CONEC

CONN D-SUB RCPT 9POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	242A27020X

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic
Features	Filter
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Voltage Rating	100 V
Wire Gauge	20 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Color	Mounting Type	Current Rating (Amps)	Contact Material	Number of Rows	Voltage Rating	Contact Finish Thickness	Number of Positions	Material Flammability Rating	Connector Style	Dielectric Material	Connector Type	Shell Size, Connector Layout	Contact Finish	Flange Feature	Wire Gauge	Features	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout
Amphenol CONEC 242A27030X	-25 °C	105 ░C	Signal	Black	Free Hanging (In-Line)	7.5 A	Copper Alloy	2	100 V	Flash	15	UL94 V-0	D-Sub	Thermoplastic	Receptacle Female Sockets	2	Gold	Cable Side	20 AWG	Filter
Amphenol CONEC 242A27020X	-25 °C	105 ░C	Signal	Black	Free Hanging (In-Line)	7.5 A	Copper Alloy	2	100 V	Flash	9	UL94 V-0	D-Sub	Thermoplastic	Receptacle Female Sockets		Gold	Cable Side	20 AWG	Filter	DE E	1
Amphenol CONEC 242A27000X	-25 °C	105 ░C	Signal	Black	Free Hanging (In-Line)	7.5 A	Copper Alloy	2	100 V	Flash		UL94 V-0	D-Sub	Thermoplastic	Receptacle Female Sockets		Gold	Cable Side	20 AWG	Filter	B DB	3
Amphenol CONEC 242A27050X	-25 °C	105 ░C	Signal	Black	Free Hanging (In-Line)	7.5 A	Copper Alloy	2	100 V	Flash	37	UL94 V-0	D-Sub	Thermoplastic	Receptacle Female Sockets		Gold	Cable Side	20 AWG	Filter			4 (DC C)
Amphenol CONEC 242A27040X	-25 °C	105 ░C	Signal	Black	Free Hanging (In-Line)	7.5 A	Copper Alloy	2	100 V	Flash		UL94 V-0	D-Sub	Thermoplastic	Receptacle Female Sockets		Gold	Cable Side	20 AWG	Filter	B DB	3
