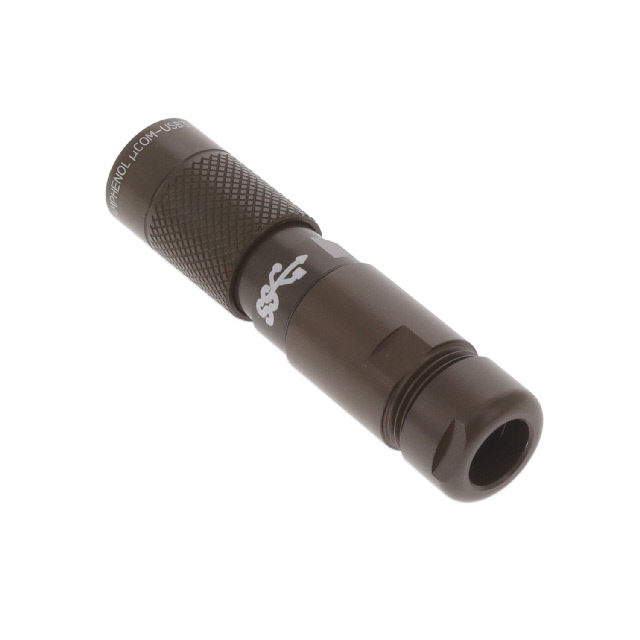

UCOMUSB3PTSGGA

Active

Amphenol Socapex

CONN PLUG MALE 8POS SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

UCOMUSB3PTSGGA

Active

Amphenol Socapex

CONN PLUG MALE 8POS SOLDER CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCOMUSB3PTSGGA

Applications	Military, Aerospace
Backshell Material, Plating	Olive Drab Cadmium, Brass
Cable Opening [custom]	5.5 mm, 7.5 mm
Cable Opening [custom]	0.217 in, 0.295 in
Color	Olive Drab
Connector Type	Plug, Male Pins
Features	Coupling Nut, Backshell
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Brass
Shielding	Unshielded

UCOMUSB Series

Part	Cable Opening [custom]	Cable Opening [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Backshell Material, Plating	Mounting Type	Fastening Type	Shielding	Features	Shell Finish	Applications	Connector Type	Termination	Number of Positions	Orientation	Color	Primary Material	Mounting Feature
Amphenol Socapex UCOMUSB3PPCBGA	5.5 mm 7.5 mm	0.217 in 0.295 in	-55 °C	125 °C	Brass	Black Nickel Brass	Free Hanging (In-Line)	Push-Pull	Unshielded	Backshell Coupling Nut	Black Nickel	Aerospace Military	Male Pins Plug	Crimp	8	Keyed	Black	Metal
Amphenol Socapex UCOMUSB3LCBB			-55 °C	125 °C	Brass		Free Hanging (In-Line)	Push-Pull Threaded	Unshielded	Heat Shrink	Black Nickel	Aerospace Military	Receptacle Female Sockets	Crimp	8	Keyed	Black	Metal
Amphenol Socapex UCOMUSB3PPSUB			-55 °C	125 °C	Brass		Free Hanging (In-Line)	Push-Pull	Unshielded	Coupling Nut Heat Shrink		Aerospace Military	Male Pins Plug		8	Keyed		Metal
Amphenol Socapex UCOMUSB3PPCBB			-55 °C	125 °C	Brass		Free Hanging (In-Line)	Push-Pull	Unshielded	Coupling Nut Heat Shrink	Black Nickel	Aerospace Military	Male Pins Plug	Crimp	8	Keyed	Black	Metal
Amphenol Socapex UCOMUSB3RPB			-55 °C	125 °C	Brass		Panel Mount Through Hole	Push-Pull	Unshielded		Black Nickel	Aerospace Military	Receptacle Female Sockets	Solder	8	Keyed	Black	Metal	Bulkhead - Front Side Nut
Amphenol Socapex UCOMUSB3PTSBB			-55 °C	125 °C	Brass		Free Hanging (In-Line)		Unshielded	Coupling Nut Heat Shrink	Black Nickel	Aerospace Military	Male Pins Plug		8	Keyed	Black	Metal
Amphenol Socapex UCOMUSB3PTSGGA	5.5 mm 7.5 mm	0.217 in 0.295 in	-55 °C	125 °C	Brass	Brass Olive Drab Cadmium	Free Hanging (In-Line)		Unshielded	Backshell Coupling Nut	Olive Drab Cadmium	Aerospace Military	Male Pins Plug		8	Keyed	Olive Drab	Metal
Amphenol Socapex UCOMUSB3LCBGA	5.5 mm 7.5 mm	0.217 in 0.295 in	-55 °C	125 °C	Brass	Black Nickel Brass	Free Hanging (In-Line)	Push-Pull Threaded	Unshielded	Backshell	Black Nickel	Aerospace Military	Receptacle Female Sockets	Crimp	8	Keyed	Black	Metal
Amphenol Socapex UCOMUSB3PPSUGA	5.5 mm 7.5 mm	0.217 in 0.295 in	-55 °C	125 °C	Brass	Brass	Free Hanging (In-Line)	Push-Pull	Unshielded	Backshell Coupling Nut		Aerospace Military	Male Pins Plug		8	Keyed		Metal
Amphenol Socapex UCOMUSB3PTCGB			-55 °C	125 °C	Brass		Free Hanging (In-Line)		Unshielded	Coupling Nut Heat Shrink	Olive Drab Cadmium	Aerospace Military	Male Pins Plug	Crimp	8	Keyed	Olive Drab	Metal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 274.34

Description

General part information

UCOMUSB Series

8 (Data) Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available
