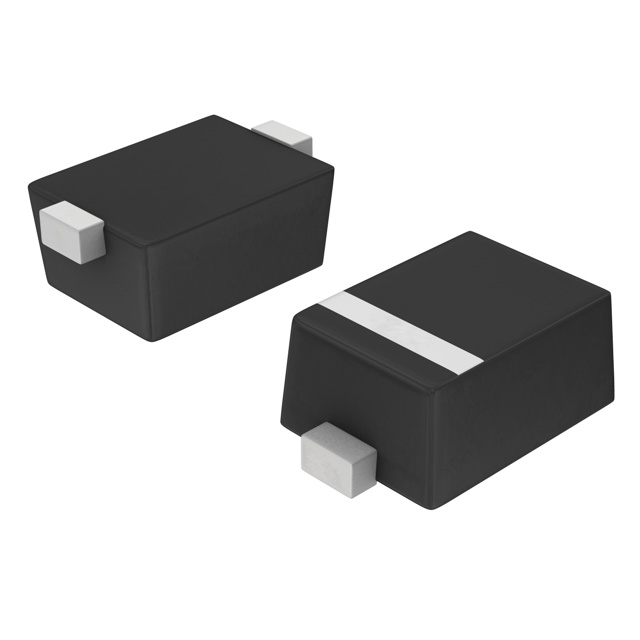

RB720M-30_R1_00001
ActivePanjit International Inc.
SOD-923, SKY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RB720M-30_R1_00001 |
|---|---|
| Current - Average Rectified (Io) | 100 mA |
| Current - Reverse Leakage @ Vr | 500 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | SOD-923 |
| Speed | Any Speed |
| Speed | 200 mA |
| Supplier Device Package | SOD-923 |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 30 V |
| Voltage - Forward (Vf) (Max) @ If [Max] | 350 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.27 | |
| 10 | $ 0.16 | |||
| 100 | $ 0.10 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.27 | ||
| 10 | $ 0.16 | |||
| 100 | $ 0.10 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.06 | |||
| Tape & Reel (TR) | 8000 | $ 0.05 | ||
| 16000 | $ 0.04 | |||
| 24000 | $ 0.04 | |||
| 40000 | $ 0.04 | |||
| 56000 | $ 0.04 | |||
| 80000 | $ 0.04 | |||
| 200000 | $ 0.03 | |||
Description
General part information
RB720M Series
Diode 30 V 100mA Surface Mount SOD-923
Documents
Technical documentation and resources
