233,BK

Active

Serpac

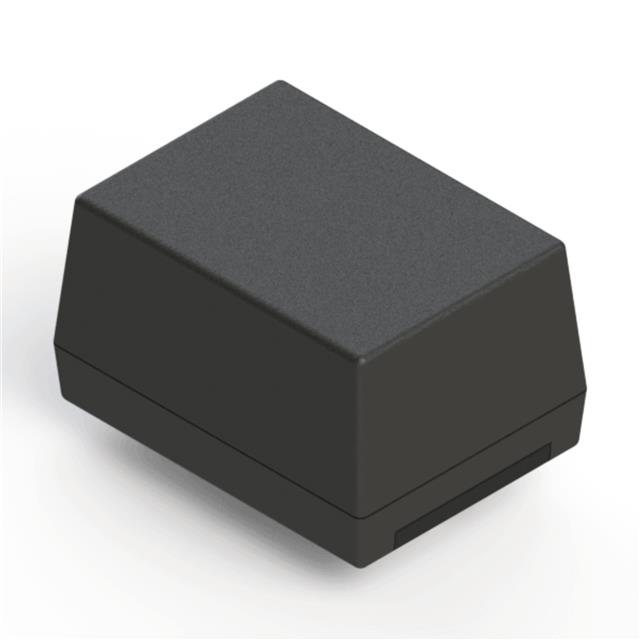

BOX ABS BLACK 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 4.38"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	233,BK

Area (L x W)	14.2 in²
Area (L x W)	92 cm˛
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Thickness	2.54 mm
Thickness	0.1 in
Weight	119.29 g
Weight	0.263 lb

Part	Ratings	Color	Material	Design	Material Flammability Rating	Container Type	Features	Features	Height [z]	Height [z]	Weight	Weight	Thickness	Thickness	Area (L x W)	Area (L x W)
Serpac 233,GY	IP40 NEMA 1	Gray	Plastic ABS	Hand Held Split Sides	UL94 HB	Box	Battery Compartment PCB Supports	9 V	63.5 mm	2.5 in	119.29 g	0.263 lb	2.54 mm	0.1 in	14.2 in²	92 cm˛
Serpac 233,BK	IP40 NEMA 1	Black	Plastic ABS	Hand Held Split Sides	UL94 HB	Box	Battery Compartment PCB Supports	9 V	63.5 mm	2.5 in	119.29 g	0.263 lb	2.54 mm	0.1 in	14.2 in²	92 cm˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Split Sides 4.380" L x 3.250" W (111.25mm x 82.55mm) X 2.500" (63.50mm)

Technical documentation and resources

No documents available
