JMXHH1G03FCUDSU

Active

Souriau-Sunbank by Eaton

CONN RCPT FMALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

JMXHH1G03FCUDSU

Active

Souriau-Sunbank by Eaton

CONN RCPT FMALE 3POS GOLD CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JMXHH1G03FCUDSU

Applications	Medical, Industrial, Instrumentation
Color	Light Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Current Rating (Amps)	9 A
Fastening Type	Push-Pull
Ingress Protection	IP50/IP68 - Dust Protected, Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Orientation	G
Primary Material	Plastic
Shell Material	Polyetherimide (PEI)
Shell Size - Insert [Max]	3
Shell Size - Insert [Min]	1
Shielding	Unshielded
Termination	Crimp
Voltage Rating	230 V

JMXHH1 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Ingress Protection	Mounting Feature	Material Flammability Rating	Orientation	Fastening Type	Number of Positions	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Color	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Connector Type	Current Rating (Amps)	Contact Finish - Mating	Voltage Rating	Insert Material	Shielding	Termination	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Shell Size - Insert
Souriau-Sunbank by Eaton JMXHH1G07FSUDSU	100 °C	-20 C	Plastic	IP68 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	UL94 V-0	G	Push-Pull	7	7	1	Light Gray	Polyetherimide (PEI)	0.5 µm	19.7 µin	Industrial Instrumentation Medical	Receptacle Female Sockets	5 A	Gold	160 V	Polyetheretherketone (PEEK)	Unshielded
Souriau-Sunbank by Eaton JMXHH1G06FCUDSU	100 °C	-20 C	Plastic	IP50/IP68 - Dust Protected Dust Tight Waterproof	Bulkhead - Rear Side Nut	UL94 V-0	G	Push-Pull	6	6	1	Light Gray	Polyetherimide (PEI)	0.5 µm	19.7 µin	Industrial Instrumentation Medical	Receptacle Female Sockets	6 A	Gold	160 V	Polyetheretherketone (PEEK)	Unshielded	Crimp
Souriau-Sunbank by Eaton JMXHH1G10FSUDSU	100 °C	-20 C	Plastic	IP68 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	UL94 V-0	G	Push-Pull	10	10	1	Light Gray	Polyetherimide (PEI)	0.5 µm	19.7 µin	Industrial Instrumentation Medical	Receptacle Female Sockets	2.5 A	Gold	100 V	Polyetheretherketone (PEEK)	Unshielded
Souriau-Sunbank by Eaton JMXHH1G03FCUDSU	100 °C	-20 C	Plastic	IP50/IP68 - Dust Protected Dust Tight Waterproof	Bulkhead - Rear Side Nut	UL94 V-0	G	Push-Pull		3	1	Light Gray	Polyetherimide (PEI)	0.5 µm	19.7 µin	Industrial Instrumentation Medical	Receptacle Female Sockets	9 A	Gold	230 V	Polyetheretherketone (PEEK)	Unshielded	Crimp
Souriau-Sunbank by Eaton JMXHH1G05FCUDSU	100 °C	-20 C	Plastic	IP50/IP68 - Dust Protected Dust Tight Waterproof	Bulkhead - Rear Side Nut	UL94 V-0	G	Push-Pull				Light Gray	Polyetherimide (PEI)	0.5 µm	19.7 µin	Industrial Instrumentation Medical	Receptacle Female Sockets	7 A	Gold	230 V	Polyetheretherketone (PEEK)	Unshielded	Crimp	1	5
Souriau-Sunbank by Eaton JMXHH1G12FSUDSU	100 °C	-20 C	Plastic	IP68 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	UL94 V-0	G	Push-Pull	12			Light Gray	Polyetherimide (PEI)	0.5 µm	19.7 µin	Industrial Instrumentation Medical	Receptacle Female Sockets	2.5 A	Gold	100 V	Polyetheretherketone (PEEK)	Unshielded				1-12
Souriau-Sunbank by Eaton JMXHH1G05FSUDSU	100 °C	-20 C	Plastic	IP68 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	UL94 V-0	G	Push-Pull				Light Gray	Polyetherimide (PEI)	0.5 µm	19.7 µin	Industrial Instrumentation Medical	Receptacle Female Sockets	7 A	Gold	230 V	Polyetheretherketone (PEEK)	Unshielded		1	5
Souriau-Sunbank by Eaton JMXHH1G12MSUDSA	100 °C	-20 C	Plastic	IP68 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	UL94 V-0	G	Push-Pull	12			Blue Light Gray	Polyetherimide (PEI)	0.5 µm	19.7 µin	Industrial Instrumentation Medical	Male Pins Receptacle	2.5 A	Gold	100 V	Polyetheretherketone (PEEK)	Unshielded				1-12
Souriau-Sunbank by Eaton JMXHH1G04FSUDSU	100 °C	-20 C	Plastic	IP68 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	UL94 V-0	G	Push-Pull	4	4	1	Light Gray	Polyetherimide (PEI)	0.5 µm	19.7 µin	Industrial Instrumentation Medical	Receptacle Female Sockets	8 A	Gold	230 V	Polyetheretherketone (PEEK)	Unshielded
Souriau-Sunbank by Eaton JMXHH1G03MSUDSM	100 °C	-20 C	Plastic	IP68 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	UL94 V-0	G	Push-Pull		3	1	Brown Light Gray	Polyetherimide (PEI)	0.5 µm	19.7 µin	Industrial Instrumentation Medical	Male Pins Receptacle	9 A	Gold	230 V	Polyetheretherketone (PEEK)	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.72
		10	$ 19.90

Description

General part information

JMXHH1 Series

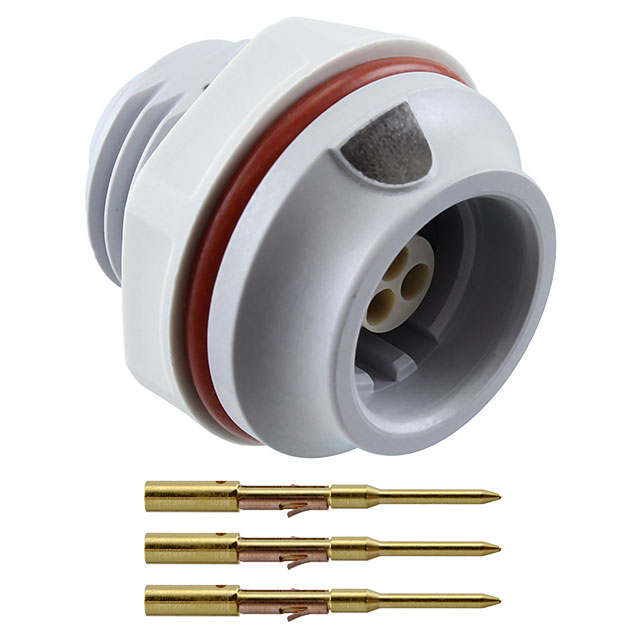

3 Position Circular Connector Receptacle, Female Sockets Crimp
