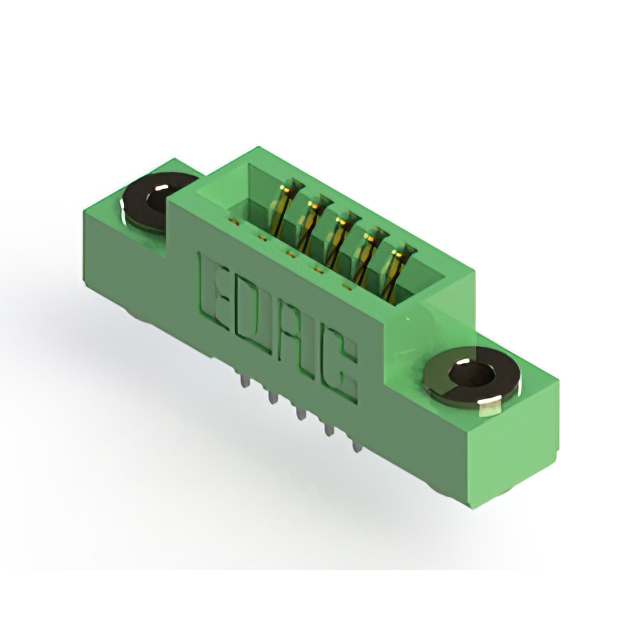

341-010-524-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 10POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-010-524-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 10POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-010-524-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions/Bay/Row [custom] | 5 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
341-010 Series
| Part | Card Type | Read Out | Number of Positions | Contact Type | Termination Rows | Mounting Type | Number of Rows | Contact Finish | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Flange Feature | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Gender | Features | Material - Insulation | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Dual Edge | Dual | 10 | Semi Bellows | 2 | Board Edge Straddle Mount | 2 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | Copper Alloy | -40 °C | 105 ░C | Solder | Flush Mount M3 Threaded Insert Top Opening | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | Card Extender | Polyester Thermoplastic | ||
EDAC Inc. | Non Specified - Single Edge | Single | 10 | Semi Bellows | 1 | Through Hole | 1 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Copper Alloy | -40 °C | 105 ░C | Solder | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | 3.96 mm | 0.156 in | |
EDAC Inc. | Non Specified - Single Edge | Single | 10 | Semi Bellows | 1 | Through Hole | 1 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Copper Alloy | -40 °C | 105 ░C | Solder | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | 3.25 mm | 0.128 " | |
EDAC Inc. | Non Specified - Single Edge | Single | 10 | Semi Bellows | 1 | Through Hole | 1 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Copper Alloy | -40 °C | 105 ░C | Solder | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | 3.96 mm | 0.156 in | |
EDAC Inc. | Non Specified - Dual Edge | Dual | 10 | Semi Bellows | 2 | Through Hole | 2 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | Copper Alloy | -40 °C | 105 ░C | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | |||
EDAC Inc. | Non Specified - Single Edge | Single | 10 | Semi Bellows | 1 | Through Hole | 1 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Copper Alloy | -40 °C | 105 ░C | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | |||
EDAC Inc. | Non Specified - Single Edge | Single | 10 | Semi Bellows | 1 | Through Hole | 1 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Copper Alloy | -40 °C | 105 ░C | Solder | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | ||||
EDAC Inc. | Non Specified - Dual Edge | Dual | 10 | Semi Bellows | 2 | Through Hole | 2 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | Copper Alloy | -40 °C | 105 ░C | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | Card Extender | Polyester Thermoplastic | ||
EDAC Inc. | Non Specified - Dual Edge | Dual | 10 | Semi Bellows | 2 | Board Edge Straddle Mount | 2 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | Copper Alloy | -40 °C | 105 ░C | Solder | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | Card Extender | Polyester Thermoplastic | 3.96 mm | 0.156 in |
EDAC Inc. | Non Specified - Dual Edge | Dual | 10 | Semi Bellows | 2 | Through Hole | 2 | Gold | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | Copper Alloy | -40 °C | 105 ░C | Solder | Floating Bobbin Flush Mount | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | Polyester Thermoplastic | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 10.75 | |
Description
General part information
341-010 Series
10 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
