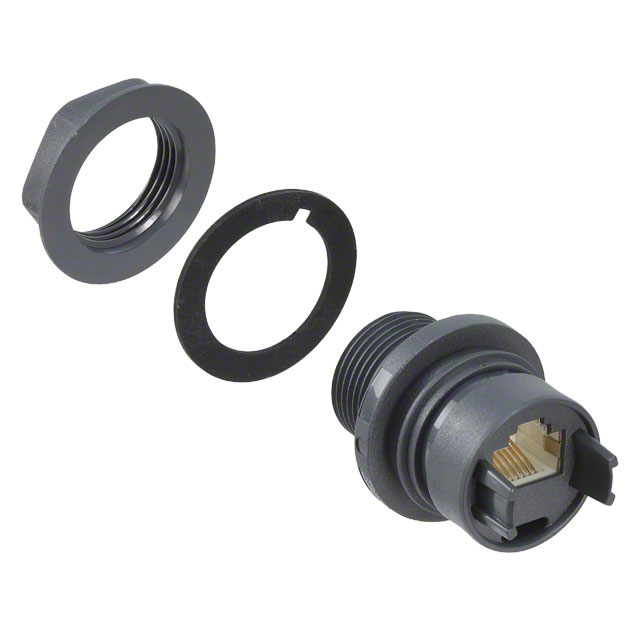

PXP6033TP

Active

BULGIN LIMITED

RECTANGULAR CONNECTOR ADAPTER

Search across all available documentation for this part.

Active

BULGIN LIMITED

RECTANGULAR CONNECTOR ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	PXP6033TP

Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Convert From (Adapter End)	Jack, 8p8c (RJ45)
Convert To (Adapter End)	8p8c (RJ45), Jack
Features	Circular Threaded Coupling
Housing Material	Acrylonitrile Butadiene Styrene (ABS)
Mounting Type	Bulkhead, Panel Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Ratings	Cat5e
Shell Material, Finish	Thermoplastic
Shielding	Unshielded
Type	Coupler

Part	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Features	Housing Material	Contact Material	Shell Material, Finish	Type	Convert To (Adapter End)	Shielding	Contact Finish Thickness	Contact Finish Thickness	Convert From (Adapter End)	Mounting Type	Contact Finish
BULGIN LIMITED PXP6033TP	Cat5e	-40 °C	70 °C	Circular Threaded Coupling	Acrylonitrile Butadiene Styrene (ABS)	Phosphor Bronze	Thermoplastic	Coupler	8p8c (RJ45) Jack	Unshielded	50 µin	1.27 µm	Jack 8p8c (RJ45)	Bulkhead Panel Mount	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat5e Unshielded
