JKXFD0G07MSSDPGR

Active

Souriau-Sunbank by Eaton

CONN PLUG MALE 7P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN PLUG MALE 7P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JKXFD0G07MSSDPGR

Applications	Audio, Instrumentation, Video, Medical, Telecommunications
Backshell Material, Plating	Brass, Chrome over Nickel
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Contact Material	Brass
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Features	Cable Clamp, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Shielded

Part	Backshell Material, Plating	Primary Material	Contact Finish - Mating	Color	Ingress Protection	Shell Finish	Contact Material	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Orientation	Shell Size - Insert	Number of Positions	Features	Mounting Type	Shell Material	Shielding	Connector Type
Souriau-Sunbank by Eaton JKXFD0G07MSSDPGR	Brass Chrome over Nickel	Metal	Gold	Silver	IP68 - Dust Tight Waterproof	Chrome over Nickel	Brass	Polyetheretherketone (PEEK)	0.5 µm	19.7 µin	Audio Instrumentation Medical Telecommunications Video	2.5 A	-50 °C	125 °C	Push-Pull	G	0	7	Backshell Cable Clamp	Free Hanging (In-Line)	Brass	Shielded	Male Pins Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

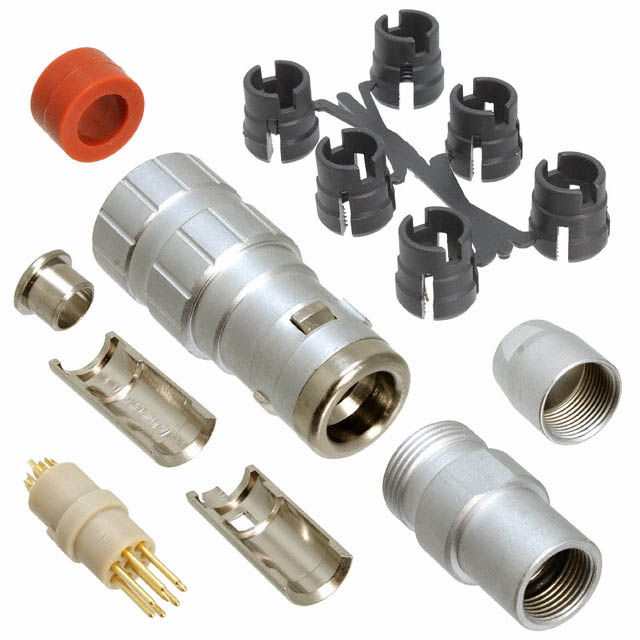

7 Position Circular Connector Plug, Male Pins Solder Cup

Technical documentation and resources

No documents available
