764101117

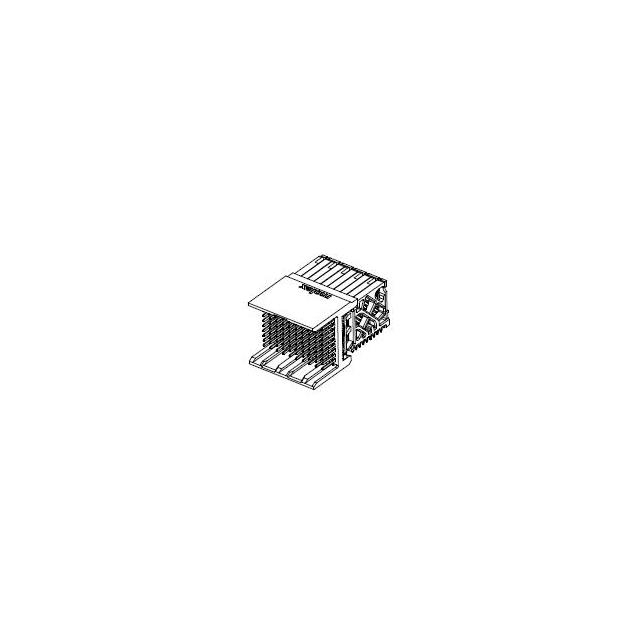

ActiveIMPACT 100 OHM 3 PAIR RIGHT-ANGLE MALE HEADER, UNGUIDED, LEFT ENDWALL, 10 COLUMNS, 90 CIRCUITS, PIN LENGTH 4.90MM, PLATED THROUGH HOLE DIMENSION 0.39MM, LEAD-FREE
Deep-Dive with AI
Search across all available documentation for this part.
764101117
ActiveIMPACT 100 OHM 3 PAIR RIGHT-ANGLE MALE HEADER, UNGUIDED, LEFT ENDWALL, 10 COLUMNS, 90 CIRCUITS, PIN LENGTH 4.90MM, PLATED THROUGH HOLE DIMENSION 0.39MM, LEAD-FREE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 764101117 |
|---|---|
| Color | Black |
| Connector Style | Impact |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Layout, Typical | 30 Differential Pairs |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Columns | 10 |
| Number of Positions | 90 |
| Number of Positions Loaded | All |
| Number of Rows | 9 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Termination | Press-Fit |
| Voltage Rating | 30 VDC |
