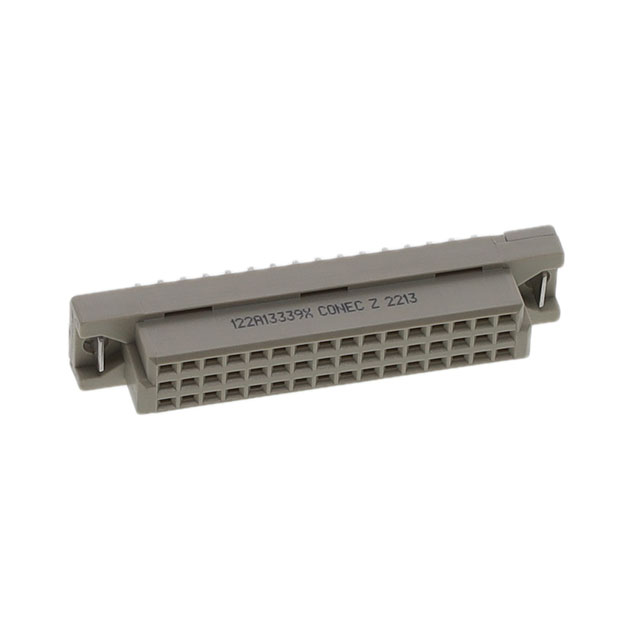

122A13339X

Active

Amphenol CONEC

CONN DIN RCPT 48POS PCB GOLD

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN DIN RCPT 48POS PCB GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	122A13339X

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Current Rating (Amps)	2 A
Features	Mounting Clips
Level, Class	3
Material - Insulation	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Style	C/2
Style	1/2 C
Termination	Solder

Part	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Features	Connector Type	Level, Class	Pitch [x]	Pitch [x]	Material Flammability Rating	Style	Style	Mounting Type	Number of Rows	Number of Positions Loaded	Current Rating (Amps)	Number of Positions	Contact Finish	Number of Positions Loaded [custom]
Amphenol CONEC 122A13339X	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Solder	Mounting Clips	Receptacle Female Sockets	3	2.54 mm	0.1 in	UL94 V-0	C/2	1/2 C	Through Hole	3	All	2 A	48	Gold
Amphenol CONEC 122A13349X	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Solder	Mounting Clips	Receptacle Female Sockets	3	5.08 mm	0.2 in	UL94 V-0	D		Panel Mount Through Hole	2		5.5 Amps		Gold	16
Amphenol CONEC 122A13359X	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Solder	Mounting Clips	Receptacle Female Sockets	3	5.08 mm	0.2 in	UL94 V-0	D		Panel Mount Through Hole	2	All	5.5 Amps		Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 6.76

General part information

48 Position Din Connector Receptacle, Female Sockets Gold Through Hole
