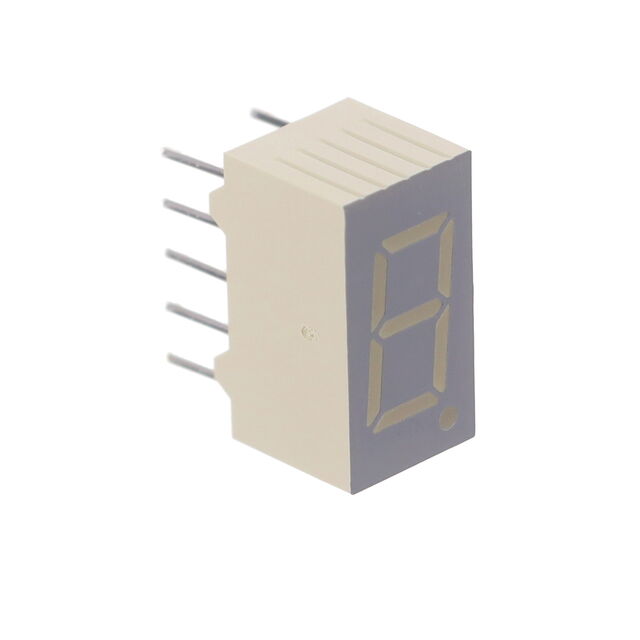

SC36-11SURKWA

Active

Kingbright

DISPLAY 7SEG 0.36" SGL RED 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SC36-11SURKWA

Active

Kingbright

DISPLAY 7SEG 0.36" SGL RED 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC36-11SURKWA

Color	Red
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	0.36 in
Digit/Alpha Size	9.14 mm
Display Type	7-Segment
Millicandela Rating	28 mcd
Number of Characters [custom]	1
Package / Case	10-DIP
Package / Case	0.2 in
Package / Case	0.2 in
Power Dissipation (Max) [Max]	75 mw
Size / Dimension	14 mm, 7.5 mm, 8.5 mm
Size / Dimension [x]	0.551 in
Size / Dimension [y]	0.295 in
Size / Dimension [z]	0.335 "
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength - Peak	645 nm

SC36-11 Series

Part	Size / Dimension	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Characters [custom]	Millicandela Rating	Wavelength - Peak	Color	Package / Case	Package / Case	Package / Case	Current - Test	Power Dissipation (Max) [Max]	Digit/Alpha Size	Digit/Alpha Size	Display Type	Voltage - Forward (Vf) (Typ)	Common Pin
Kingbright SC36-11SRWA	7.5 mm 8.5 mm 14 mm	0.335 "	0.295 in	0.551 in	1	10 mcd	660 nm	Red	10-DIP	0.2 in	0.2 in	20 mA	75 mw	0.36 in	9.14 mm	7-Segment	1.85 V	Common Cathode
Kingbright SC36-11SURKWA	7.5 mm 8.5 mm 14 mm	0.335 "	0.295 in	0.551 in	1	28 mcd	645 nm	Red	10-DIP	0.2 in	0.2 in	20 mA	75 mw	0.36 in	9.14 mm	7-Segment	1.95 V	Common Cathode
Kingbright SC36-11YWA	7.5 mm 8.5 mm 14 mm	0.335 "	0.295 in	0.551 in	1	2.6 mcd	590 nm	Yellow	10-DIP	0.2 in	0.2 in	20 mA	75 mw	0.36 in	9.14 mm	7-Segment	2.1 V	Common Cathode
Kingbright SC36-11GWA	7.5 mm 8.5 mm 14 mm	0.335 "	0.295 in	0.551 in	1	3.5 mcd	565 nm	Green	10-DIP	0.2 in	0.2 in	20 mA	62.5 mW	0.36 in	9.14 mm	7-Segment	2.2 V	Common Cathode
Kingbright SC36-11CGKWA	7.5 mm 8.5 mm 14 mm	0.335 "	0.295 in	0.551 in	1	11 mcd		Green	10-DIP	0.2 in	0.2 in	20 mA	75 mw	0.36 in	9.14 mm	7-Segment	2.1 V	Common Cathode
Kingbright SC36-11EWA	7.5 mm 8.5 mm 14 mm	0.335 "	0.295 in	0.551 in	1	2.1 mcd	627 nm	Red	10-DIP	0.2 in	0.2 in	20 mA	75 mw	0.36 in	9.14 mm	7-Segment	2 V	Common Cathode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.24
		36	$ 1.20
		108	$ 1.04
		504	$ 0.89
		1008	$ 0.85
		2016	$ 0.81
		5004	$ 0.76
		10008	$ 0.74

Description

General part information

SC36-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.95V 20mA 0.551" H x 0.295" W x 0.335" D (14.00mm x 7.50mm x 8.50mm) 10-DIP (0.200", 5.08mm)
