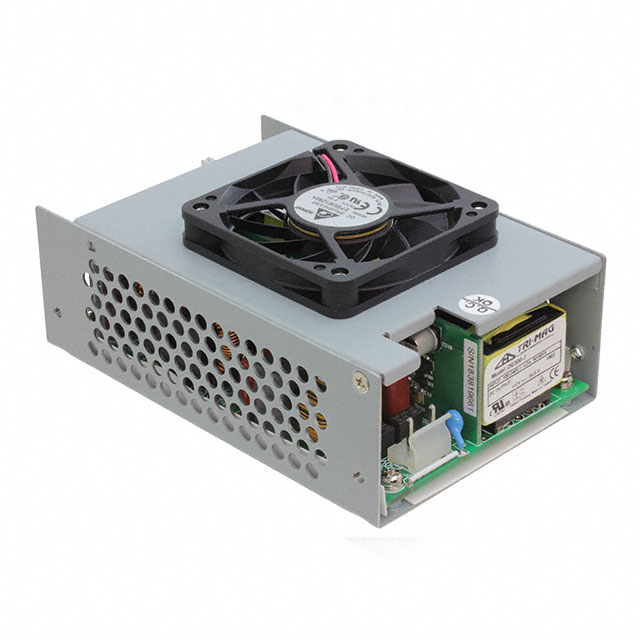

DE300-7

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 300W

Search across all available documentation for this part.

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 300W

Technical Specifications

Parameters and characteristics for this part

Specification	DE300-7

Applications	ITE (Commercial)
Current - Output 1	25 A
Efficiency	91 %
Features	Standby Output, Universal Input, PFC
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	300 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3.3 in
Size / Dimension [y]	83.8 mm
Size / Dimension [z]	53 mm
Size / Dimension [z]	2.09 "
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	12 V

Part	Type	Number of Outputs	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Voltage - Output 1	Features	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Applications
Tri-Mag, LLC DE300-7	Enclosed	1	Chassis Mount	3.3 in	53 mm	83.8 mm	5 in	127 mm	2.09 "	300 W	12 V	PFC Standby Output Universal Input	25 A	90 VAC	264 VAC	91 %	ITE (Commercial)
Tri-Mag, LLC DE300-G	Enclosed	1	Chassis Mount	3.3 in	53 mm	83.8 mm	5 in	127 mm	2.09 "	300 W	28 V	PFC Standby Output Universal Input	10.7 A	90 VAC	264 VAC	91 %	ITE (Commercial)
Tri-Mag, LLC DE300-9	Enclosed	1	Chassis Mount	3.3 in	53 mm	83.8 mm	5 in	127 mm	2.09 "	300 W	24 V	PFC Standby Output Universal Input	12.5 A	90 VAC	264 VAC	91 %	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 213.41

General part information

Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
