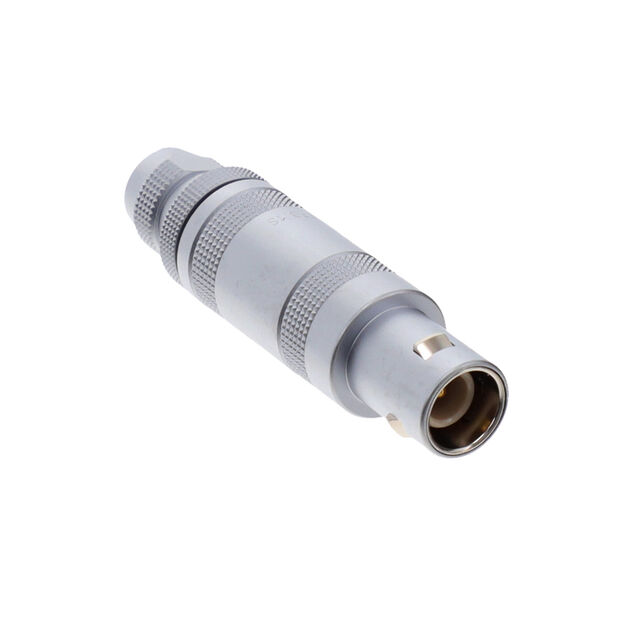

FFB.1S.250.CLAC52

Active

LEMO

CONN COAX PLUG STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFB.1S.250.CLAC52

Active

LEMO

CONN COAX PLUG STR 50 OHM SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFB.1S.250.CLAC52

Body Finish	Chrome
Body Material	Brass
Cable Group	174A, 188A, 196A, 316B, 178B, RG-122, 174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	Coaxial
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyetheretherketone (PEEK)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp

FFB.1S Series

Part	Backshell Material, Plating	Connector Type	Orientation	Features	Insert Material	Number of Positions	Shell Finish	Mounting Type	Contact Finish - Mating	Color	Shell Material	Fastening Type	Ingress Protection	Shielding	Shell Size - Insert	Primary Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Material Flammability Rating	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Mating Cycles	Center Contact Material	Shield Termination	Center Contact Plating	Impedance	Housing Color	Number of Ports	Dielectric Material	Contact Termination	Body Finish	Connector Style	Body Material	Cable Group	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]
LEMO FFB.1S.405.CTAC27	Brass Chrome	Male Pins Plug	Keyed	Backshell	Polytetrafluoroethylene (PTFE)	1	Chrome	Free Hanging (In-Line)	Gold	Silver	Brass	Push-Pull	IP50	Shielded	405	Metal	4 A	-55 °C	250 °C	Brass
LEMO FFB.1S.405.CLAC32	Brass Chrome	Male Pins Plug	Keyed	Backshell	Polyetheretherketone (PEEK)	1	Chrome	Free Hanging (In-Line)	Gold	Silver	Brass	Push-Pull	IP50	Shielded	405	Metal	4 A	-55 °C	250 °C	Brass	UL94 V-0	2.2 mm 3.2 mm	0.087 in 0.126 in
LEMO FFB.1S.405.CTLC42	Brass Chrome	Female Sockets Plug	Keyed	Backshell	Polytetrafluoroethylene (PTFE)	1	Chrome	Free Hanging (In-Line)	Gold	Silver	Brass	Push-Pull	IP50	Shielded	405	Metal	8 A	-55 °C	250 °C	Bronze				0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO FFB.1S.405.CTLC32	Brass Chrome	Female Sockets Plug	Keyed	Backshell	Polytetrafluoroethylene (PTFE)	1	Chrome	Free Hanging (In-Line)	Gold	Silver	Brass	Push-Pull	IP50	Shielded	405	Metal	8 A	-55 °C	250 °C	Bronze		2.2 mm 3.2 mm	0.087 in 0.126 in
LEMO FFB.1S.250.CLAC52		Male Pin Plug						Free Hanging (In-Line)				Push-Pull	IP50					-55 °C	250 °C									1000	Brass	Clamp	Gold	50 Ohms	Silver	1	Polyetheretherketone (PEEK)	Solder	Chrome	Coaxial	Brass	174 174A 178B 188A 196A 316B RG-122
LEMO FFB.1S.275.CLAC52		Male Pin Plug						Free Hanging (In-Line)				Push-Pull	IP50					-55 °C	250 °C									1000	Brass	Clamp	Gold	75 Ohms	Silver	1	Polyetheretherketone (PEEK)	Solder	Chrome	Coaxial	Brass	179B 187A 223 302 400 59B RG-58C
LEMO FFB.1S.250.CTAC52		Male Pin Plug						Free Hanging (In-Line)				Push-Pull	IP50					-55 °C	250 °C									1000	Brass	Clamp	Gold	50 Ohms	Silver	1	Polytetrafluoroethylene (PTFE)	Solder	Chrome	Coaxial	Brass	174 174A 178B 188A 196A 316B RG-122
LEMO FFB.1S.405.CLAC52	Brass Chrome	Male Pins Plug	Keyed	Backshell	Polyetheretherketone (PEEK)	1	Chrome	Free Hanging (In-Line)	Gold	Silver	Brass	Push-Pull	IP50	Shielded	405	Metal	4 A	-55 °C	250 °C	Brass	UL94 V-0																				0.165 in 0.205 in	4.2 mm	5.2 mm
LEMO FFB.1S.405.CTAC52	Brass Chrome	Male Pins Plug	Keyed	Backshell	Polytetrafluoroethylene (PTFE)	1	Chrome	Free Hanging (In-Line)	Gold	Silver	Brass	Push-Pull	IP50	Shielded	405	Metal	4 A	-55 °C	250 °C	Brass																					0.165 in 0.205 in	4.2 mm	5.2 mm
LEMO FFB.1S.405.CTAC57	Brass Chrome	Male Pins Plug	Keyed	Backshell	Polytetrafluoroethylene (PTFE)	1	Chrome	Free Hanging (In-Line)	Gold	Silver	Brass	Push-Pull	IP50	Shielded	405	Metal	4 A	-55 °C	250 °C	Brass		5.2 mm 5.7 mm																						0.205 in 0.224 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.68
		10	$ 37.37
		25	$ 35.76
		50	$ 34.60
		100	$ 33.45
		250	$ 31.60

Description

General part information

FFB.1S Series

Coaxial Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
