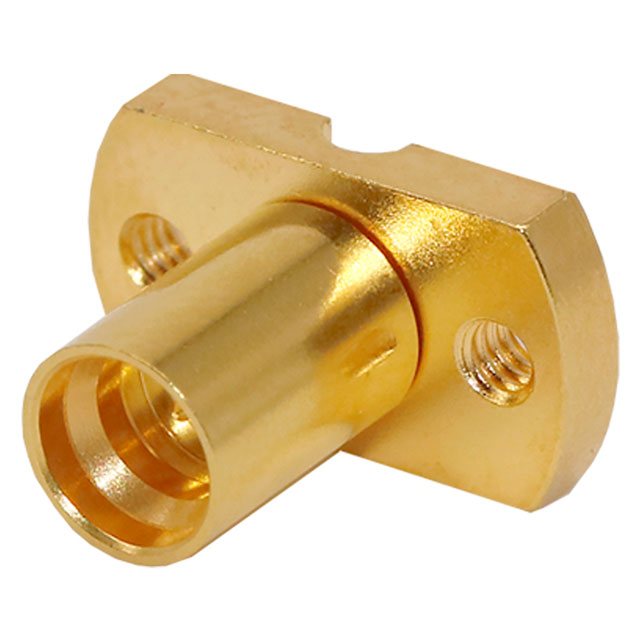

127-0701-631

Active

Cinch Connectivity Solutions Johnson

SMP COMPRESSION CONNECTOR, MICRO

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

SMP COMPRESSION CONNECTOR, MICRO

Technical Specifications

Parameters and characteristics for this part

Specification	127-0701-631

Body Finish	Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Male Pin, Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max [Max]	40 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Feature	Flange
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Compression
Voltage Rating	335 V

Part	Body Finish	Fastening Type	Voltage Rating	Frequency - Max [Max]	Body Material	Features	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Number of Ports	Connector Type	Dielectric Material	Mounting Type	Housing Color	Contact Termination	Shield Termination	Center Contact Plating	Mounting Feature
Cinch Connectivity Solutions Johnson 127-0701-221	Gold	Snap-On	325 V	18 GHz	Beryllium Copper	Full Detent	Beryllium Copper	-65 ░C	165 °C	50 Ohms	1	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Surface Mount	Gold	Solder	Solder	Gold
Cinch Connectivity Solutions Johnson 127-0701-631	Gold	Snap-On	335 V	40 GHz	Beryllium Copper Brass	Full Detent	Beryllium Copper	-65 ░C	165 °C	50 Ohms	1	Jack Male Pin	Polytetrafluoroethylene (PTFE)	Surface Mount	Gold		Compression	Gold	Flange
Cinch Connectivity Solutions Johnson 127-0701-641	Gold	Snap-On	335 V	40 GHz	Beryllium Copper Brass	Full Detent	Beryllium Copper	-65 ░C	165 °C	50 Ohms	1	Jack Male Pin	Polytetrafluoroethylene (PTFE)	Surface Mount	Gold		Compression	Gold	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 18.81

General part information

SMP Connector Jack, Male Pin 50 Ohms Surface Mount
