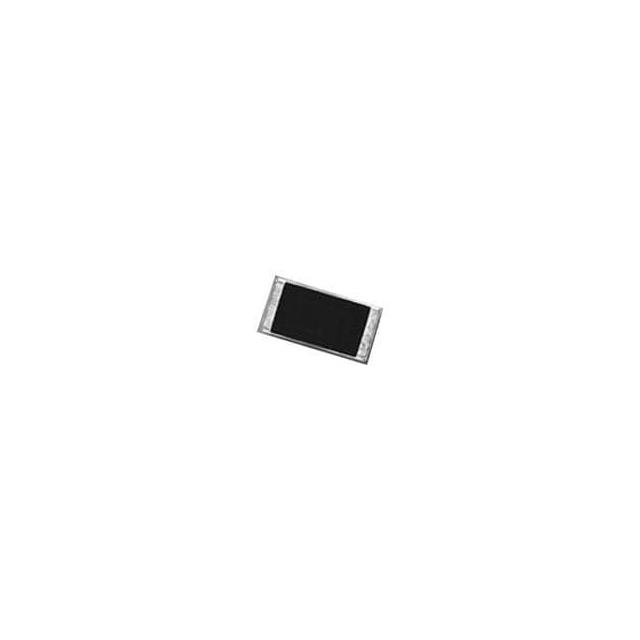

AC0603FR-07274RL
ActiveYageo America
CHIP RESISTOR
Deep-Dive with AI
Search across all available documentation for this part.
AC0603FR-07274RL
ActiveYageo America
CHIP RESISTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AC0603FR-07274RL |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Power (Watts) | 0.1 W |
| Power (Watts) | 0.1 W |
| Ratings | AEC-Q200 |
| Resistance | 274 Ohms |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.00 | |
| 34000 | $ 0.00 | |||
Description
General part information
AC0603FR-07274RL
274 Ohms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200, Moisture Resistant Thick Film
Documents
Technical documentation and resources
No documents available
