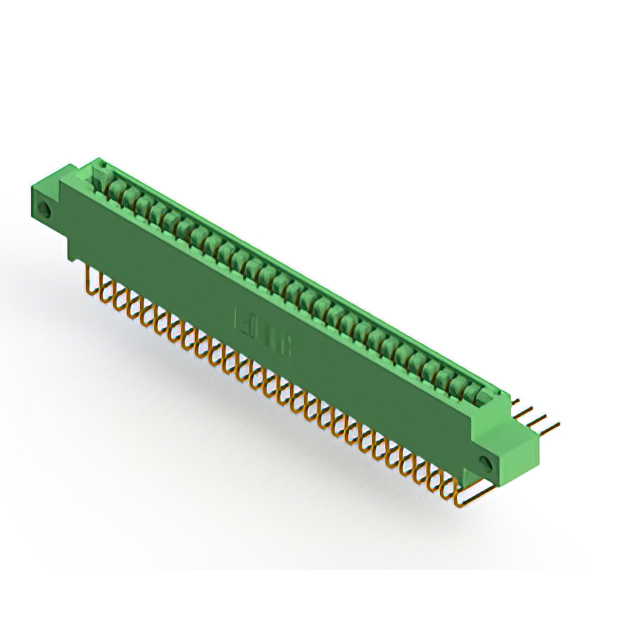

846-056-558-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 56POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-056-558-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 56POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-056-558-812 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 56 |
| Number of Positions/Bay/Row [custom] | 28 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
846-056 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Features | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Number of Positions | Pitch [x] | Pitch [x] | Contact Material | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination Rows | Gender | Contact Finish Thickness | Contact Finish Thickness | Card Type | Contact Finish | Mounting Type | Number of Rows | Material - Insulation | Read Out | Color | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | 28 | 125 °C | -40 °C | Cantilever | 56 | 0.125 in | 3.18 mm | Copper Alloy | Solder | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2 | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Gold | Board Edge Straddle Mount | 2 | Diallyl Phthalate (DAP) | Dual | Green | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | 28 | 125 °C | -40 °C | Cantilever | 56 | 0.125 in | 3.18 mm | Copper Alloy | Solder | 4-40 Threaded Insert Top Mount Opening | 2 | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Gold | Board Edge Straddle Mount | 2 | Diallyl Phthalate (DAP) | Dual | Green | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | 125 °C | -40 °C | Cantilever | 56 | 0.125 in | 3.18 mm | Copper Alloy | Solder | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2 | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Gold | Through Hole | 2 | Diallyl Phthalate (DAP) | Dual | Green | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | 125 °C | -40 °C | Cantilever | 56 | 0.125 in | 3.18 mm | Copper Alloy | Solder | Side Mount Opening Unthreaded | 2 | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Gold | Through Hole Right Angle | 2 | Diallyl Phthalate (DAP) | Dual | Green | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | 28 | 125 °C | -40 °C | Cantilever | 56 | 0.125 in | 3.18 mm | Copper Alloy | Solder | 2 | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Gold | Board Edge Straddle Mount | 2 | Diallyl Phthalate (DAP) | Dual | Green | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | 125 °C | -40 °C | Cantilever | 56 | 0.125 in | 3.18 mm | Copper Alloy | Solder Eyelet(s) | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 2 | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Gold | Through Hole | 2 | Diallyl Phthalate (DAP) | Dual | Green | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | 125 °C | -40 °C | Cantilever | 56 | 0.125 in | 3.18 mm | Copper Alloy | Wire Wrap | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2 | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Gold | Through Hole | 2 | Diallyl Phthalate (DAP) | Dual | Green | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | 125 °C | -40 °C | Cantilever | 56 | 0.125 in | 3.18 mm | Copper Alloy | Solder | Side Mount Opening Unthreaded | 2 | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Gold | Through Hole | 2 | Diallyl Phthalate (DAP) | Dual | Green | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | 28 | 125 °C | -40 °C | Cantilever | 56 | 0.125 in | 3.18 mm | Copper Alloy | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Gold | Board Edge Straddle Mount | 2 | Diallyl Phthalate (DAP) | Dual | Green | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | 125 °C | -40 °C | Cantilever | 56 | 0.125 in | 3.18 mm | Copper Alloy | Wire Wrap | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2 | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Gold | Through Hole | 2 | Diallyl Phthalate (DAP) | Dual | Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-056 Series
56 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
