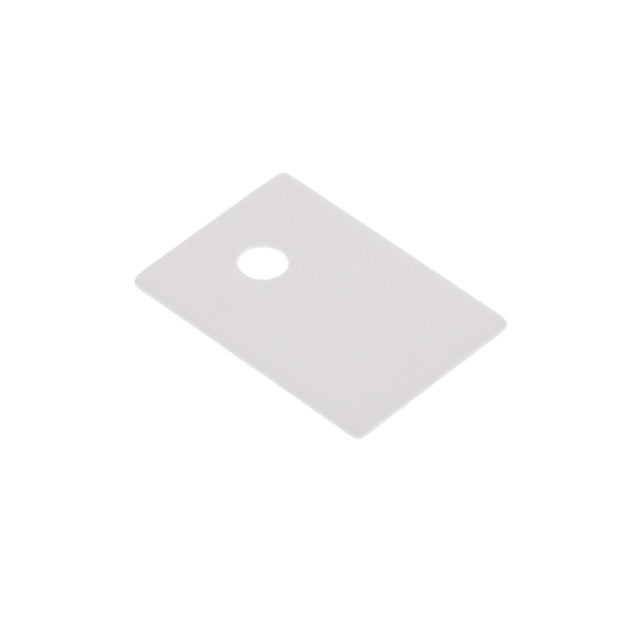

XL25W-TO220-20-14-0.64

Active

t-Global Technology

CERAMIC HEAT SPREADER 20X14MM WH

Search across all available documentation for this part.

Active

t-Global Technology

CERAMIC HEAT SPREADER 20X14MM WH

Technical Specifications

Parameters and characteristics for this part

Part	Attachment Method	Length	Length	Shape	Fin Height [z]	Fin Height [z]	Material	Package Cooled	Width [y]	Width [y]	Type	Length [x]	Length [x]	Width	Width	Width [x]	Width [x]	Fin Height	Fin Height
t-Global Technology XL25W-TO3P-25-20-1	Thermal Tape	25 mm	0.984 in	Rectangular	0.039 in	1 mm	Ceramic	TO-3P	20 mm	0.787 in	Heat Spreader
t-Global Technology XL25W-TO220-20-14-0.64	Thermal Tape			Rectangular			Ceramic	TO-220			Heat Spreader	0.787 "	20 mm	0.551 in	14 mm
t-Global Technology XL25W-TO264-28-22-1	Thermal Tape	28 mm	1.102 in	Rectangular	0.039 in	1 mm	Ceramic	TO-264			Heat Spreader					22 mm	0.866 "
t-Global Technology XL25W-TO247-22-17-1	Thermal Tape	22 mm	0.866 "	Rectangular	0.039 in	1 mm	Ceramic	TO-247			Heat Spreader					17 mm	0.669 in
t-Global Technology XL25W-TO3P-25-20-0.64	Thermal Tape	25 mm	0.984 in	Rectangular			Ceramic	TO-3P	20 mm	0.787 in	Heat Spreader
t-Global Technology XL25W-TO220-18.5-12-1	Thermal Tape	18.5 mm	0.728 "	Rectangular			Ceramic	TO-220			Heat Spreader			0.472 in	12 mm			12.1 mm	0.476 in
t-Global Technology XL25W-TO247-22-17-0.64	Thermal Tape	22 mm	0.866 "	Rectangular			Ceramic	TO-247			Heat Spreader					17 mm	0.669 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Ceramic Heat Spreader
