RSL1AB4BD
ActiveSQUARE D BY SCHNEIDER ELECTRIC
POWER RELAY, SPDT, 24 VDC, 6 A, RSL SERIES, SOCKET, DC
Deep-Dive with AI
Search across all available documentation for this part.
RSL1AB4BD
ActiveSQUARE D BY SCHNEIDER ELECTRIC
POWER RELAY, SPDT, 24 VDC, 6 A, RSL SERIES, SOCKET, DC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RSL1AB4BD |
|---|---|
| Approval Agency | CSA, UL, EAC |
| Coil Current | 7.1 mA |
| Coil Resistance | 3.39 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A |
| Load - Max Switching [Max] | 1662 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 12 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Switching Voltage [Max] | 277 VAC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RSL1A Series

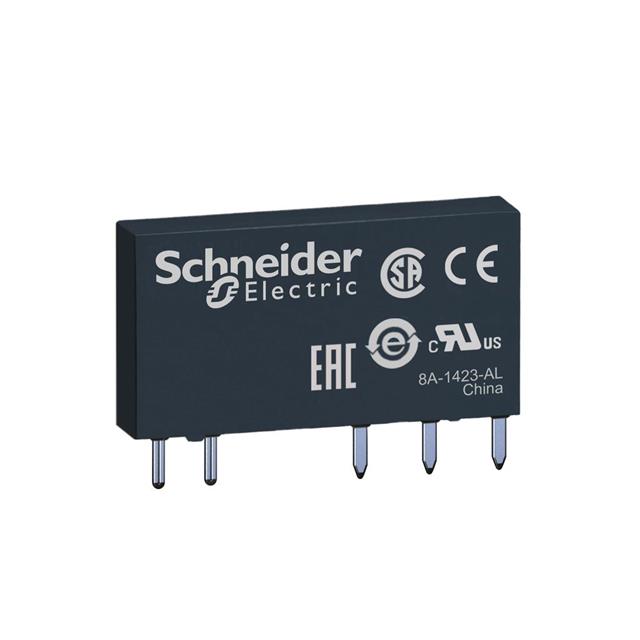

The RSL1AB4BD is a Slim Interface Plug-in Relay with SPDT silver alloy contact. This RSL-series socket mount interface relay features as compact size, 1 or 2 C/O contacts, used on industrial machines, machines and building equipment, simple hard-wired logic control system cycles, extra feature for industrial PLCs.
