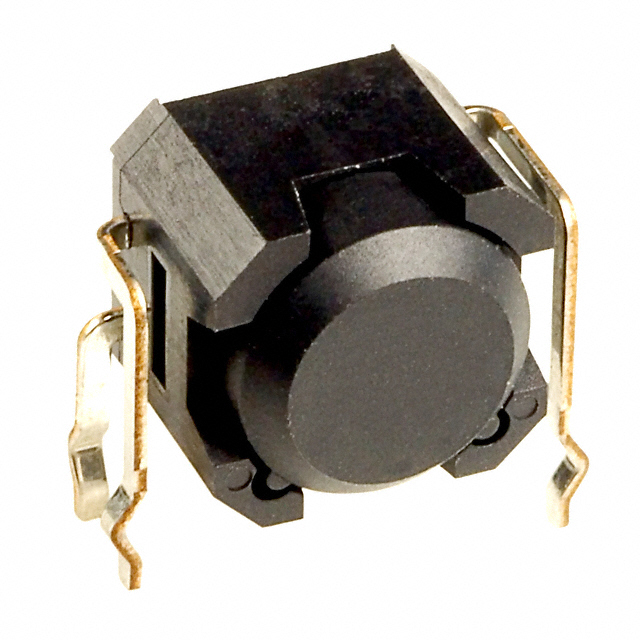

DSBA1H

Active

NKK Switches

TILT SWITCH, DSB SERIES, RIGHT ANGLED, 60 °, 20 MA, PBT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DSBA1H

Mounting Type	Through Hole, Right Angle
Operating Angle [Max]	60 °
Operating Angle [Min]	-30 °
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Output Type	NPN
Package / Case	PCB Mount

DSBA1 Series

Part	Package / Case	Mounting Type	Output Type	Operating Angle [Max]	Operating Angle [Min]	Operating Temperature [Min]	Operating Temperature [Max]
NKK Switches DSBA1H	PCB Mount	Through Hole Right Angle	NPN	60 °	-30 °	-25 °C	80 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.59
		10	$ 6.96
		25	$ 6.39
		80	$ 5.72
		230	$ 5.17
		440	$ 4.85
		945	$ 4.50
Newark	Each	1	$ 13.46
		5	$ 12.55
		10	$ 11.55
		25	$ 10.54
		50	$ 9.53
		100	$ 8.42
		250	$ 7.56

Description

General part information

DSBA1 Series

The DSBA1H is a 60° beam angle Tilt Switch with PBT (polybutylene terephthalate) body, glass fibre reinforced polyamide housing and base, tin-plating phosphor bronze right angle PC terminals and ON-OFF status. This DSB series switch is triggered when tilted beyond ±30° of the horizontal. Crimped terminals ensure secure mounting and prevent dislodging during wave soldering. Totally sealed body allows process compatibility for time and money-saving automatic soldering and cleaning.
