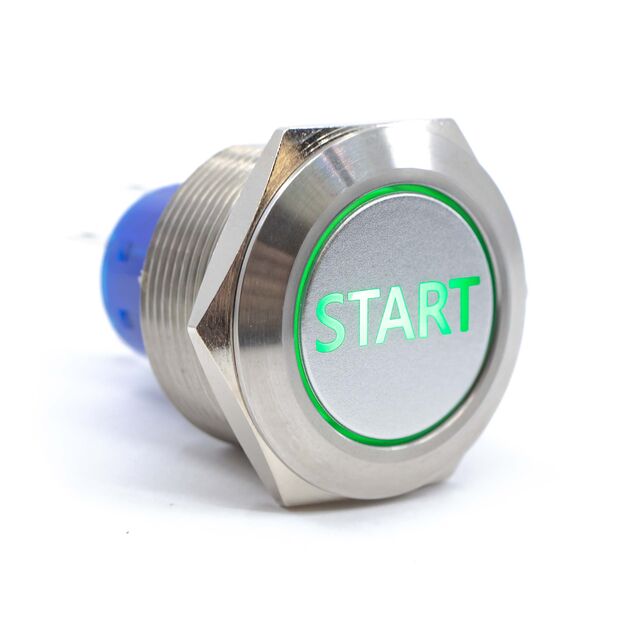

ULV8F2BSLL34L20
ActiveE-Switch
SWITCH PUSHBUTTON SPDT 3A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ULV8F2BSLL34L20 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 3 A |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 12 VDC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 25 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 125 V |
ULV8 Series
| Part | Termination Style | Termination Style | Termination Style | Electrical Life | Circuit | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Voltage (Nominal) | Illumination Type, Color | Mechanical Life | Switch Function | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Actuator Type | Ingress Protection | Type | Mounting Type | Color - Actuator/Cap | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | 0.11 in | Quick Connect Solder | 2.8 mm | 50000 Cycles | SPDT | 125 V | 55 °C | -20 C | 12 VDC | Green/Red LED | 1000000 Cycles | On-Mom | 25 mm | 3 A | Button Flush Round | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Panel Mount Front | Silver | |
E-Switch | 0.11 in | Quick Connect Solder | 2.8 mm | 50000 Cycles | SPDT | 250 V | 55 °C | -20 C | 6 V | Green LED | 500000 Cycles | On-On | 25.2 mm | 3 A | Button Flush Round | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Panel Mount Front | Black | No Marking |
E-Switch | 0.11 in | Quick Connect Solder | 2.8 mm | 50000 Cycles | DPDT | 250 V | 55 °C | -20 C | 3 VDC | Blue LED | 500000 Cycles | On-On | 25.2 mm | 3 A | Button Flush Round | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Panel Mount Front | Silver | No Marking |
E-Switch | Solder Lug | 50000 Cycles | SPDT | 125 V | 55 °C | -20 C | 12 VDC | Green LED | 1000000 Cycles | On-Mom | 25 mm | 3 A | Button Flush Round | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Panel Mount Front | Silver | No Marking | ||
E-Switch | 0.11 in | Quick Connect Solder | 2.8 mm | 50000 Cycles | DPDT | 250 V | 55 °C | -20 C | 3 VDC | Blue LED | 1000000 Cycles | On-Mom | 25.2 mm | 3 A | Button Flush Round | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Panel Mount Front | Silver | No Marking |
E-Switch | 0.11 in | Quick Connect Solder | 2.8 mm | 50000 Cycles | SPDT | 125 V | 55 °C | -20 C | 24 V | LED White | 500000 Cycles | On-On | 25 mm | 3 A | Button Flush Round | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Panel Mount Front | Silver | |
E-Switch | 0.11 in | Quick Connect Solder | 2.8 mm | 50000 Cycles | SPDT | 125 V | 55 °C | -20 C | 12 VDC | Green LED | 500000 Cycles | On-On | 25 mm | 3 A | Button Flush Round | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Panel Mount Front | Silver | |
E-Switch | 0.11 in | Quick Connect Solder | 2.8 mm | 50000 Cycles | SPDT | 125 V | 55 °C | -20 C | 3 VDC | LED White | 1000000 Cycles | On-Mom | 25 mm | 3 A | Button Flush Round | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Panel Mount Front | Black | |
E-Switch | 0.11 in | Quick Connect Solder | 2.8 mm | 50000 Cycles | SPDT | 250 V | 55 °C | -20 C | 3 VDC | LED Red | 500000 Cycles | On-On | 25.2 mm | 3 A | Button Flush Round | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Panel Mount Front | Silver | No Marking |
E-Switch | Wire Leads | 50000 Cycles | DPDT | 250 V | 55 °C | -20 C | 3 VDC | LED Red | 500000 Cycles | On-On | 25.2 mm | 3 A | Button Flush Round | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | Panel Mount Front | Silver | No Marking |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.65 | |
| 20 | $ 14.57 | |||
| 40 | $ 13.94 | |||
| 60 | $ 13.58 | |||
| 100 | $ 13.14 | |||
| 260 | $ 12.35 | |||
| 500 | $ 11.84 | |||
Description
General part information
ULV8 Series
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
