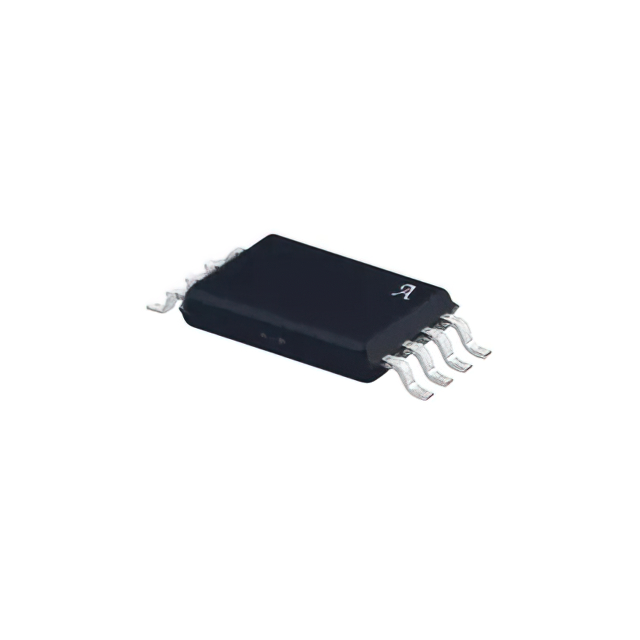

CT453-H00DRTS08

Active

Allegro MicroSystems

XTREMESENSE TMR 1MHZ BANDWIDTH C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet XtremeSense™ TMR technology

CT453-H00DRTS08

Active

Allegro MicroSystems

XTREMESENSE TMR 1MHZ BANDWIDTH C

Deep-Dive with AI

DocumentsDatasheet XtremeSense™ TMR technology

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT453-H00DRTS08

Accuracy	0.7 %
Current - Sensing	Programmable
Current - Supply (Max) [Max]	9 mA
For Measuring	AC/DC
Frequency	DC ~ 1MHz
Linearity	0.2 %
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output	Analog Voltage
Package / Case	8-TSSOP
Package / Case [custom]	0.173 "
Package / Case [custom]	4.4 mm
Polarization	Unidirectional
Response Time	300 ns
Sensor Type	Magnetoresistive
Supplier Device Package	8-TSSOP
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

CT453 Series

Part	Linearity	Number of Channels	For Measuring	Current - Supply (Max) [Max]	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Current - Sensing	Package / Case	Package / Case [custom]	Package / Case [custom]	Mounting Type	Polarization	Response Time	Output	Sensor Type	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	Package / Case [y]	Package / Case [x]	Interface	Supplied Contents	Utilized IC / Part	Sensing Range
Allegro MicroSystems CT453-H00DRTS08	0.2 %	1	AC/DC	9 mA	8-TSSOP	3.6 V	3 V	DC ~ 1MHz	Programmable	8-TSSOP	0.173 "	4.4 mm	Surface Mount	Unidirectional	300 ns	Analog Voltage	Magnetoresistive	0.7 %	125 °C	-40 °C
Allegro MicroSystems CT453-H06DRTS08	0.2 %	1	AC/DC	9 mA	8-TSSOP	3.6 V	3 V	DC ~ 1MHz		8-TSSOP	0.173 "	4.4 mm	Surface Mount	Unidirectional	300 ns	Ratiometric Voltage	Magnetoresistive	0.7 %	125 °C	-40 °C	333.3 mV/mT
Allegro MicroSystems CT453-H06DRSN08	0.2 %	1	AC/DC	9 mA	8-SOIC	3.6 V	3 V	DC ~ 1MHz		8-SOIC			Surface Mount	Unidirectional	300 ns	Ratiometric Voltage	Magnetoresistive	0.7 %	125 °C	-40 °C	333.3 mV/mT	3.9 mm	0.154 in
Allegro MicroSystems CT453-H00DRSN08	0.2 %	1	AC/DC	9 mA	8-SOIC	3.6 V	3 V	DC ~ 1MHz	Programmable	8-SOIC			Surface Mount	Unidirectional	300 ns	Analog Voltage	Magnetoresistive	0.7 %	125 °C	-40 °C		3.9 mm	0.154 in
Allegro MicroSystems CT453-H06MRSN08	0.1 %	1	AC/DC	9 mA	8-SOIC	3.6 V	3 V	DC ~ 1MHz		8-SOIC			Surface Mount	Bidirectional	300 ns	Ratiometric Voltage	Magnetoresistive	0.7 %	125 °C	-40 °C	166.7 mV/mT	3.9 mm	0.154 in
Allegro MicroSystems CTD453-BB-06U						3.6 V	3 V										Current Sensor				333.3 mV/mT			Analog	Board(s)	CT453	6 mT
Allegro MicroSystems CT453-H00MRSN08	0.2 %	1	AC/DC	9 mA	8-SOIC	3.6 V	3 V	DC ~ 1MHz	Programmable	8-SOIC			Surface Mount	Bidirectional	300 ns	Analog Voltage	Magnetoresistive	0.7 %	125 °C	-40 °C		3.9 mm	0.154 in
Allegro MicroSystems CTD453-06U						3.6 V	3 V										Current Sensor				333.3 mV/mT			Analog	Board(s)	CT453	6 mT
Allegro MicroSystems CTD453-PT-06U						3.6 V	3 V										Current Sensor				333.3 mV/mT			Analog	Board(s)	CT453	6 mT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	9000	$ 1.91

Description

General part information

CT453 Series

Current Sensor Programmable 1 Channel Magnetoresistive Unidirectional 8-TSSOP (0.173", 4.40mm Width)
