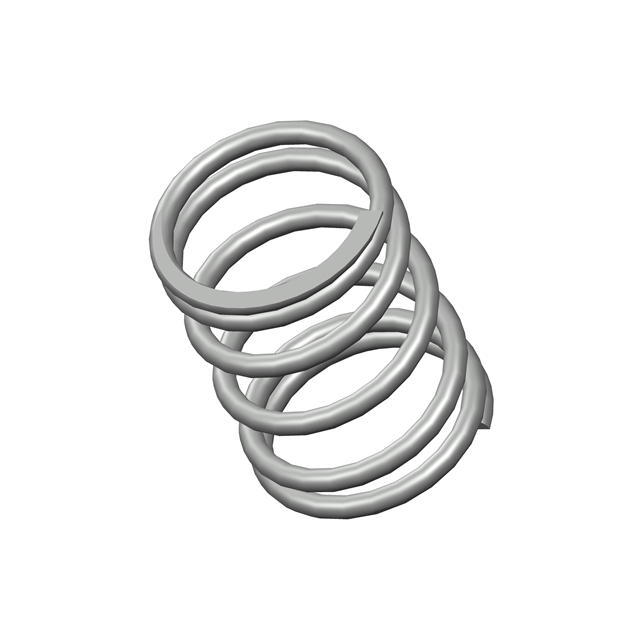

A14-42CS

Active

Century Spring Corp

COMP O= .453,L= .63,W= .043

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A14-42CS

Active

Century Spring Corp

COMP O= .453,L= .63,W= .043

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A14-42CS

Diameter - Inside [diameter]	9.32 mm
Diameter - Inside [diameter]	0.367 "
Diameter - Outside [diameter]	11.51 mm
Diameter - Outside [diameter]	0.453 in
End Style	Ground, Closed
Finish	Gold Iridite
Free Length	0.63 in
Free Length	16 mm
Material	Spring Steel
Rate	18 lbs/in
Wire Diameter	1.09 mm
Wire Diameter	0.043 "

A14 Series

Part	Finish	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Free Length	Free Length	End Style	Material	Rate	Wire Diameter	Wire Diameter	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Wire Diameter [diameter]	Wire Diameter [diameter]	Wire Diameter
Century Spring Corp A14-9CS	Gold Iridite	0.172 "	4.37 mm	13.46 mm	0.53 in	Closed Ground	Spring Steel	59 lbs/in	0.039 in	0.99 mm	6.35 mm	0.25 in
Century Spring Corp A14-1CS	Gold Iridite	0.212 in	5.38 mm	17.53 mm	0.69 in	Closed Ground	Spring Steel	45 lbs/in	0.042 in	1.07 mm	7.52 mm		0.296 in
Century Spring Corp A14-25CS	None	0.236 in	5.99 mm	11.18 mm	0.44 in	Closed Ground	Stainless Steel	39 lbs/in			7.92 mm		0.312 in	0.97 mm	0.038 "
Century Spring Corp A14-63CS	Gold Iridite	0.562 in	14.27 mm	26.16 mm	1.03 in	Closed Ground	Spring Steel	12 lbs/in	0.047 in	1.19 mm	16.66 mm		0.656 in
Century Spring Corp A14-45CS	None	0.343 in	8.71 mm	22.35 mm	0.88 in	Closed Ground	Stainless Steel	39 lbs/in	0.055 in	1.4 mm	11.51 mm		0.453 in
Century Spring Corp A14-42CS	Gold Iridite	0.367 "	9.32 mm	16 mm	0.63 in	Closed Ground	Spring Steel	18 lbs/in	0.043 "	1.09 mm	11.51 mm		0.453 in
Century Spring Corp A14-20CS	Gold Iridite	0.202 in	5.13 mm	19.05 mm	0.75 in	Closed Ground	Music Wire	6.9 lbs/in		0.61 mm	6.35 mm	0.25 in				0.024 "
Century Spring Corp A14-64CS	None	0.568 "	14.43 mm	25.4 mm	1 in	Closed Ground	Stainless Steel	8.3 lbs/in			16.66 mm		0.656 in	1.12 mm	0.044 in
Century Spring Corp A14-58CS	None	0.375 in	9.53 mm	25.4 mm	1 in	Closed Ground	Stainless Steel	10 lbs/in	0.039 in	0.99 mm	11.51 mm		0.453 in
Century Spring Corp A14-37CS	None	0.412 in	10.46 mm	24.64 mm	0.97 in	Closed Ground	Spring Steel	15 lbs/in			13.97 mm		0.5 in	1.12 mm	0.044 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

A14 Series

COMP O= .453,L= .63,W= .043
