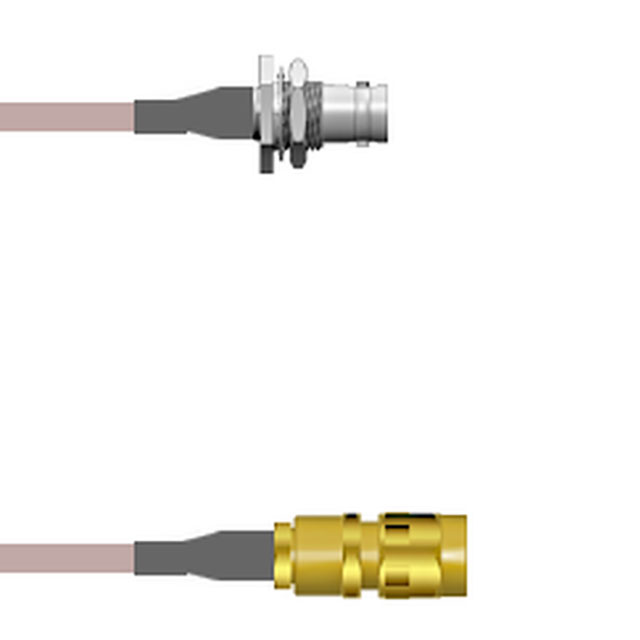

Q-0103A0001001M

Active

Amphenol Custom Cable

COAX CBL BNC TO SMA 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0103A0001001M

Active

Amphenol Custom Cable

COAX CBL BNC TO SMA 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0103A0001001M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0103A0 Series

Part	1st Connector Mounting Feature	Overall Impedance	1st Connector	Cable Type	Connector Impedance	2nd Contact Gender	2nd Connector	1st Connector Mounting Type	Cable Impedance	Features	Color	Style	Length	Length	1st Contact Gender	Frequency - Max [Max]	2nd Connector Mounting Type	Length
Amphenol Custom Cable Q-0103A0001009i	Bulkhead - Front Side Nut	50 Ohms	BNC Jack	RG-178	50 Ohms	Male	SMA Plug	Panel Mount	50 Ohms	Shielded	Copper	BNC to SMA	9 "	228.6 mm	Female	3 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-0103A0001002M	Bulkhead - Front Side Nut	50 Ohms	BNC Jack	RG-178	50 Ohms	Male	SMA Plug	Panel Mount	50 Ohms	Shielded	Copper	BNC to SMA	78.7 in	2 m	Female	3 GHz	Free Hanging (In-Line)	6.6 ft
Amphenol Custom Cable Q-0103A0001001M	Bulkhead - Front Side Nut	50 Ohms	BNC Jack	RG-178	50 Ohms	Male	SMA Plug	Panel Mount	50 Ohms	Shielded	Copper	BNC to SMA	39.4 in	1 m	Female	3 GHz	Free Hanging (In-Line)	3.3 ft
Amphenol Custom Cable Q-0103A0001036i	Bulkhead - Front Side Nut	50 Ohms	BNC Jack	RG-178	50 Ohms	Male	SMA Plug	Panel Mount	50 Ohms	Shielded	Copper	BNC to SMA	36 in	91.44 cm	Female	3 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-0103A0001003M	Bulkhead - Front Side Nut	50 Ohms	BNC Jack	RG-178	50 Ohms	Male	SMA Plug	Panel Mount	50 Ohms	Shielded	Copper	BNC to SMA	118.1 in	3 m	Female	3 GHz	Free Hanging (In-Line)	9.8 '
Amphenol Custom Cable Q-0103A00011.5M	Bulkhead - Front Side Nut	50 Ohms	BNC Jack	RG-178	50 Ohms	Male	SMA Plug	Panel Mount	50 Ohms	Shielded	Copper	BNC to SMA	59.1 in	1.5 m	Female	3 GHz	Free Hanging (In-Line)	4.9 ft
Amphenol Custom Cable Q-0103A0001006i	Bulkhead - Front Side Nut	50 Ohms	BNC Jack	RG-178	50 Ohms	Male	SMA Plug	Panel Mount	50 Ohms	Shielded	Copper	BNC to SMA	6 in	152.4 mm	Female	3 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-0103A0001084i	Bulkhead - Front Side Nut	50 Ohms	BNC Jack	RG-178	50 Ohms	Male	SMA Plug	Panel Mount	50 Ohms	Shielded	Copper	BNC to SMA	84 in	2.1 m	Female	3 GHz	Free Hanging (In-Line)	7 ft
Amphenol Custom Cable Q-0103A0001012i	Bulkhead - Front Side Nut	50 Ohms	BNC Jack	RG-178	50 Ohms	Male	SMA Plug	Panel Mount	50 Ohms	Shielded	Copper	BNC to SMA	12 "	304.8 mm	Female	3 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-0103A00012.5M	Bulkhead - Front Side Nut	50 Ohms	BNC Jack	RG-178	50 Ohms	Male	SMA Plug	Panel Mount	50 Ohms	Shielded	Copper	BNC to SMA	98.4 in	2.5 m	Female	3 GHz	Free Hanging (In-Line)	8.2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 85.00
		25	$ 83.33
		50	$ 81.67
		100	$ 80.00
		250	$ 78.34

Description

General part information

Q-0103A0 Series

Cable Assembly Coaxial BNC to SMA RG-178 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
