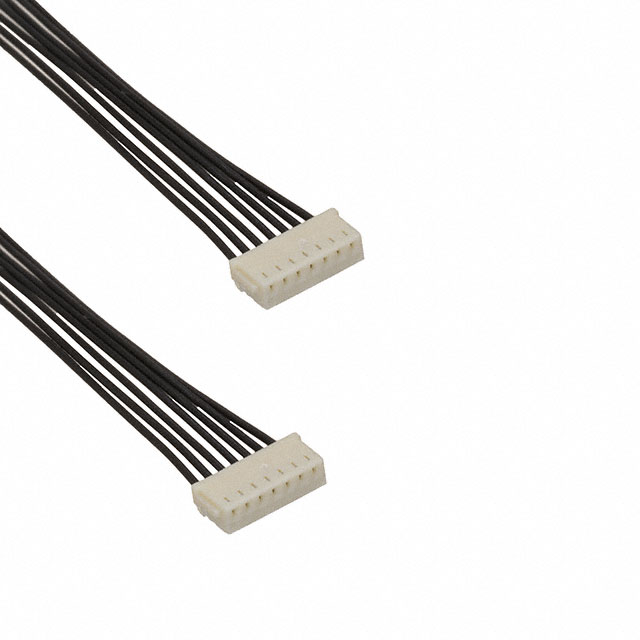

A07SR07SR30K51B
ActiveJST Sales America Inc.
JUMPER 07SR-3S - 07SR-3S 2"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A07SR07SR30K51B
ActiveJST Sales America Inc.
JUMPER 07SR-3S - 07SR-3S 2"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A07SR07SR30K51B |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Socket |
| Contact Finish | Tin |
| Length | 50.8 mm |
| Length | 2 " |
| Length | 0.167 ' |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Pitch - Connector | 0.039 " |
| Pitch - Connector | 1 mm |
A07SR07S Series
| Part | Contact Finish | Number of Rows | Length | Length | Length | Connector Type | Cable Termination | Number of Positions | Pitch - Connector | Pitch - Connector | Length | Length [x] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | Tin | 1 | 10 in | 0.833 ft | 254 mm | Socket to Socket Reversed | IDC | 7 | 0.039 " | 1 mm | ||||
JST Sales America Inc. | Tin | 1 | 6 " | 152.4 mm | Socket to Socket Reversed | IDC | 7 | 0.039 " | 1 mm | 0.5 ' | ||||
JST Sales America Inc. | Tin | 1 | Socket to Socket Reversed | IDC | 7 | 0.039 " | 1 mm | 4 " | 0.333 ft | 101.6 mm | ||||
JST Sales America Inc. | Tin | 1 | 2 " | 0.167 ' | 50.8 mm | Socket to Socket | IDC | 7 | 0.039 " | 1 mm | ||||
JST Sales America Inc. | Tin | 1 | 1 ft | 304.8 mm | Socket to Socket | IDC | 7 | 0.039 " | 1 mm | |||||
JST Sales America Inc. | Tin | 1 | 8 in | 0.667 ft | 203.2 mm | Socket to Socket | IDC | 7 | 0.039 " | 1 mm | ||||
JST Sales America Inc. | Tin | 1 | 1 ft | 304.8 mm | Socket to Socket Reversed | IDC | 7 | 0.039 " | 1 mm | |||||
JST Sales America Inc. | Tin | 1 | 6 " | 152.4 mm | Socket to Socket | IDC | 7 | 0.039 " | 1 mm | 0.5 ' | ||||
JST Sales America Inc. | Tin | 1 | 2 " | 0.167 ' | 50.8 mm | Socket to Socket Reversed | IDC | 7 | 0.039 " | 1 mm | ||||
JST Sales America Inc. | Tin | 1 | Socket to Socket | IDC | 7 | 0.039 " | 1 mm | 4 " | 0.333 ft | 101.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.88 | |
| 10 | $ 1.44 | |||
| 25 | $ 1.29 | |||
| 50 | $ 1.20 | |||
| 100 | $ 1.11 | |||
| 250 | $ 1.00 | |||
| 500 | $ 0.93 | |||
Description
General part information
A07SR07S Series
7 Position Cable Assembly Rectangular Socket to Socket 0.167' (50.80mm, 2.00")
Documents
Technical documentation and resources
