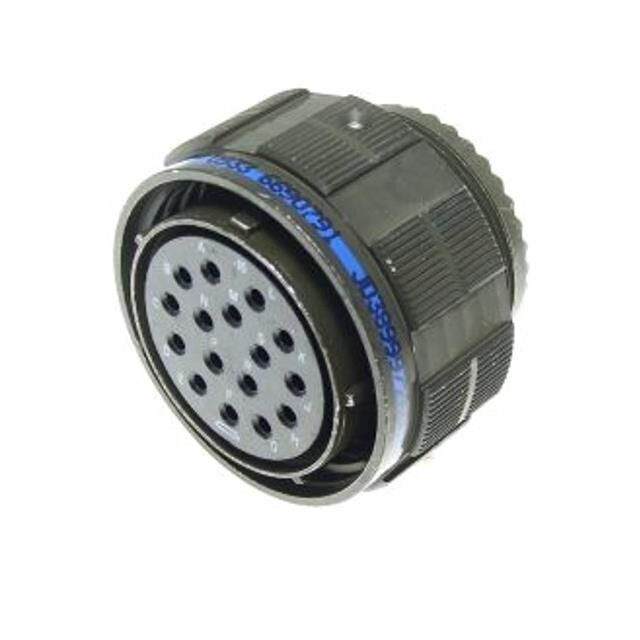

D38999/24FE26HN

Active

Corsair

D38999 SER III RECEPTACLE THREAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/24FE26HN

Active

Corsair

D38999 SER III RECEPTACLE THREAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24FE26HN

Applications	Aerospace, Aviation, Military
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	26
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Size - Insert [Max]	26
Shell Size - Insert [Min]	17
Shell Size, MIL	E
Termination	Crimp

D38999/24FE Series

Part	Connector Type	Shell Size, MIL	Ingress Protection	Type	Contact Type	Contact Size	Shielding	Insert Material	Shell Material	Orientation	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Housing Color	Note	Shell Finish	Qualification	Shell Size - Insert	Contact Shape	Grade	Color	Current Rating (Amps)	Contact Material	Applications	Termination	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Material Flammability Rating	Includes	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Corsair D38999/24FE8SAL	Receptacle Housing	E	Environment Resistant	For Female Sockets	Crimp	16	Unshielded	Thermoplastic	Aluminum	A	8	-65 ░C	200 °C	Bulkhead - Front Side Nut	Silver	Contacts Not Included	Nickel	MIL-DTL-38999 Series III	17-8	Circular	Military
Corsair D38999/24FE8SA	Receptacle Female Sockets	E	IP67 - Dust Tight Waterproof				Shielded	Thermoplastic	Aluminum	A	8	-65 ░C	200 °C	Bulkhead - Front Side Nut			Nickel		17-8			Silver	13 A	Copper Alloy	Aviation Marine Military	Crimp	Gold	1.27 µm	50 µin	Metal
Corsair D38999/24FE8PNL	Receptacle Housing	E	Waterproof	For Female Sockets	Crimp	16		Thermoplastic	Aluminum	N	8	-65 ░C	200 °C	Bulkhead - Front Side Nut	Silver	Contacts Not Included	Electroless Nickel	MIL-DTL-38999 Series III	17-8		Military									Metal	UL94 V-0	1 pc - 1 Insert Shell
Corsair D38999/24FE8PAL	Receptacle Housing	E	Environment Resistant	For Male Pins	Crimp	16	Unshielded	Thermoplastic	Aluminum	A	8	-65 ░C	200 °C	Bulkhead - Front Side Nut	Silver	Contacts Not Included	Nickel	MIL-DTL-38999 Series III	17-8	Circular	Military
Corsair D38999/24FE26HN	Receptacle Female Sockets	E	Waterproof					Thermoplastic		N	26	-65 ░C	125 °C	Bulkhead - Front Side Nut				MIL-DTL-38999 Series III			Military			Copper Alloy	Aerospace Aviation Military	Crimp	Gold			Metal	UL94 V-0		17	26
Corsair D38999/24FE8HA	Male Pins Receptacle	E					Shielded			A	8			Bulkhead - Front Side Nut					17-8			Silver			Aviation Marine Military	Crimp	Gold
Corsair D38999/24FE26SAL	Receptacle Housing	E	Environment Resistant	For Female Sockets	Crimp	20	Unshielded	Thermoplastic	Aluminum	A	26	-65 ░C	200 °C	Bulkhead - Front Side Nut	Silver	Contacts Not Included	Nickel	MIL-DTL-38999 Series III		Circular	Military												17	26
Corsair D38999/24FE35SA	Receptacle Female Sockets	E	IP67 - Dust Tight Waterproof				Shielded	Thermoplastic	Aluminum	A	55 positions	-65 ░C	200 °C	Bulkhead - Front Side Nut			Nickel					Silver	5 A	Copper Alloy	Aviation Marine Military	Crimp	Gold	1.27 µm	50 µin	Metal			17	35
Corsair D38999/24FE8SB	Receptacle Female Sockets	E	Waterproof				Shielded	Thermoplastic	Aluminum	B	8	-65 ░C	125 °C	Bulkhead - Front Side Nut			Electroless Nickel	MIL-DTL-38999 Series III	17-8		Military	Silver	13 A	Copper Alloy	Aerospace Aviation Military	Crimp	Gold	1.27 µm	50 µin	Metal	UL94 V-0
Corsair D38999/24FE2SAL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	2	$ 115.31
		10	$ 106.09
		50	$ 97.60
		100	$ 89.79
		500	$ 82.61

Description

General part information

D38999/24FE Series

26 Position Circular Connector Receptacle, Female Sockets Crimp
