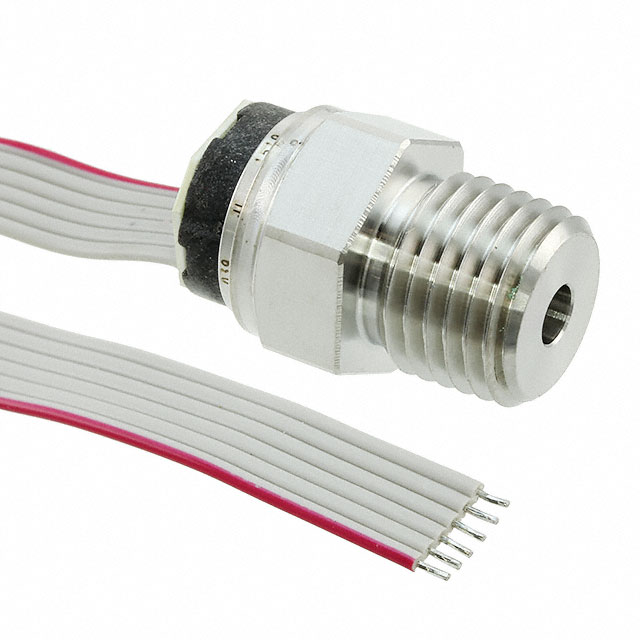

85-100G-4R

Active

TE Connectivity Measurement Specialties

SENSOR PRESSURE GAUGE

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR PRESSURE GAUGE

Technical Specifications

Parameters and characteristics for this part

Part	Features	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure	Operating Pressure	Port Style	Output [Max]	Package / Case	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Output Type	Applications	Pressure Type
TE Connectivity Measurement Specialties 85-100A-4C	Temperature Compensated	0.1 %	125 °C	-40 °C	689.48 kPa	100 PSI	No Port	100 mV	Cylinder	Cable with Connector	2068.43 kPa	300 PSI	Wheatstone Bridge
TE Connectivity Measurement Specialties 85-100A-0R	Temperature Compensated	0.1 %	125 °C	-40 °C	689.48 kPa	100 PSI	No Port	100 mV	Cylinder	Cable with Connector	2068.43 kPa	300 PSI	Wheatstone Bridge	Board Mount
TE Connectivity Measurement Specialties 85-100G-4R	Temperature Compensated	0.1 %	125 °C	-40 °C	689.48 kPa	100 PSI	No Port	100 mV	Cylinder	Cable with Connector	2068.43 kPa	300 PSI	Wheatstone Bridge	Board Mount	Vented Gauge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	60	$ 79.07

General part information

Pressure Sensor 100PSI (689.48kPa) Vented Gauge 0 mV ~ 100 mV Cylinder
