UCC561TD

Obsolete

Texas Instruments

LVD SCSI 27 LINE REG

Search across all available documentation for this part.

Obsolete

Texas Instruments

LVD SCSI 27 LINE REG

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Mounting Type	Number of Terminations	Package / Case	Package / Case [x]	Package / Case [y]	Operating Temperature [Max]	Package / Case [y]	Package / Case [y]	Package / Case [custom]	Package / Case [custom]
Texas Instruments UCC5614DPTR	16-SOIC	5.25 V	2.7 V	SCSI	Surface Mount	9	16-SOIC	0.154 in	3.9 mm	70 °C
Texas Instruments UCC5618DWP	28-SOIC			SCSI	Surface Mount	18	28-SOIC	0.295 in	7.5 mm	70 °C
Texas Instruments UCC5619MWP	36-SSOP			SCSI	Surface Mount	27	36-BSOP			70 °C	0.295 in	7.5 mm

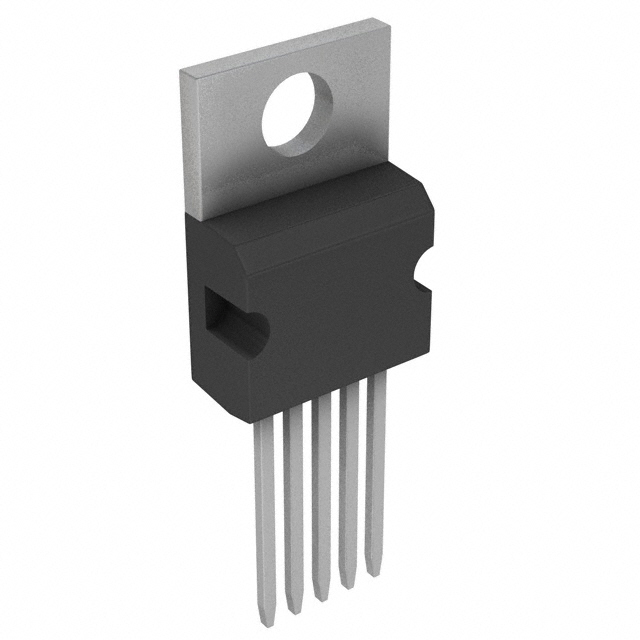

Texas Instruments UCC561TD	TO-220-5	5.25 V	2.7 V	LVD SCSI	Through Hole	27	TO-220-5			70 °C
Texas Instruments UCC5611DWP	28-SOIC	5.25 V	2.75 V	SCSI	Surface Mount	18	28-SOIC	0.295 in	7.5 mm	70 °C
Texas Instruments UCC561DP	16-SOIC	5.25 V	2.7 V	LVD SCSI	Surface Mount	27	16-SOIC	0.154 in	3.9 mm	70 °C
Texas Instruments UCC561DPTR	16-SOIC	5.25 V	2.7 V	LVD SCSI	Surface Mount	27	16-SOIC	0.154 in	3.9 mm	70 °C
Texas Instruments UCC5618PWP	28-HTSSOP			SCSI	Surface Mount	18	28-PowerTSSOP			70 °C			4.4 mm	0.173 "
Texas Instruments UCC5617DWPTR	28-SOIC			SCSI	Surface Mount	18	28-SOIC	0.295 in	7.5 mm	70 °C
Texas Instruments UCC5618PWPTR	28-HTSSOP			SCSI	Surface Mount	18	28-PowerTSSOP			70 °C			4.4 mm	0.173 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	94	$ 3.19

General part information

SCSI, LVD Terminator 27 Terminations TO-220-5
