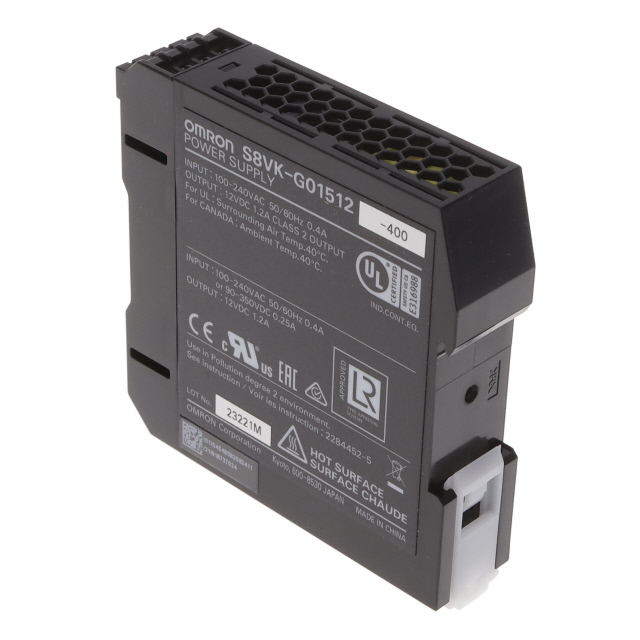

S8VK-G01512-400

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 12V 15W

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 12V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	S8VK-G01512-400

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	TUV, CE, cULus, cURus
Current - Output (Max) [Max]	1.2 A
Efficiency	77 %
Features	PFC, Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Power (Watts)	15 W
Size / Dimension [x]	90 mm
Size / Dimension [x]	3.54 in
Size / Dimension [y]	0.89 in
Size / Dimension [y]	22.5 mm
Size / Dimension [z]	3.54 "
Size / Dimension [z]	90 mm
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Number of Outputs	Efficiency	Voltage - Output 1	Features	Current - Output (Max) [Max]	Approval Agency	Input Type	Power (Watts)	Applications	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Omron Electronics Inc-EMC Div S8VK-G01512-400	3.54 "	0.89 in	90 mm	90 mm	3.54 in	22.5 mm	3000 V	1	77 %	12 V	Adjustable Output PFC Universal Input	1.2 A	CE cULus cURus TUV	AC	15 W	ITE (Commercial)	85 VAC	264 VAC
Omron Electronics Inc-EMC Div S8VK-G01512	3.54 "	0.89 in	90 mm	90 mm	3.54 in	22.5 mm	3000 V	1	77 %	12 V	Adjustable Output Load Sharing Universal Input	1.2 A	CE cULus cURus VDE	AC	15 W	ITE (Commercial)	85 VAC	264 VAC	-40 °C	75 ¯C
Omron Electronics Inc-EMC Div S8VK-G01524	3.54 "	0.89 in	90 mm	90 mm	3.54 in	22.5 mm	3000 V	1	80 %	24 V	Adjustable Output Load Sharing Universal Input	650 mA	CE cULus cURus VDE	AC	15 W	ITE (Commercial)	85 VAC	264 VAC	-40 °C	75 ¯C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 12V 15W
