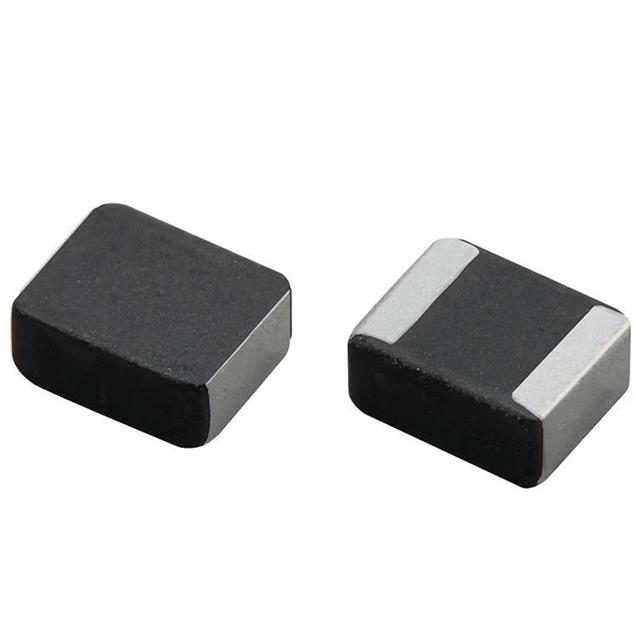

WIP201610S-R22MLDG
ActiveINPAQ Technology Co., Ltd
POWER INDUCTOR 2016 0.22UH 20% D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WIP201610S-R22MLDG
ActiveINPAQ Technology Co., Ltd
POWER INDUCTOR 2016 0.22UH 20% D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WIP201610S-R22MLDG |
|---|---|
| Current - Saturation (Isat) | 7 A |
| Current Rating (Amps) | 6 A |
| DC Resistance (DCR) | 19 mOhm |
| Frequency - Self Resonant | 120 MHz |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 220 nH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Iron Powder |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0806 (2016 Metric) |
| Shielding | Shielded |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 0806 |
| Tolerance | 20 % |
| Type | Wirewound |
