0393530015

Obsolete

Molex

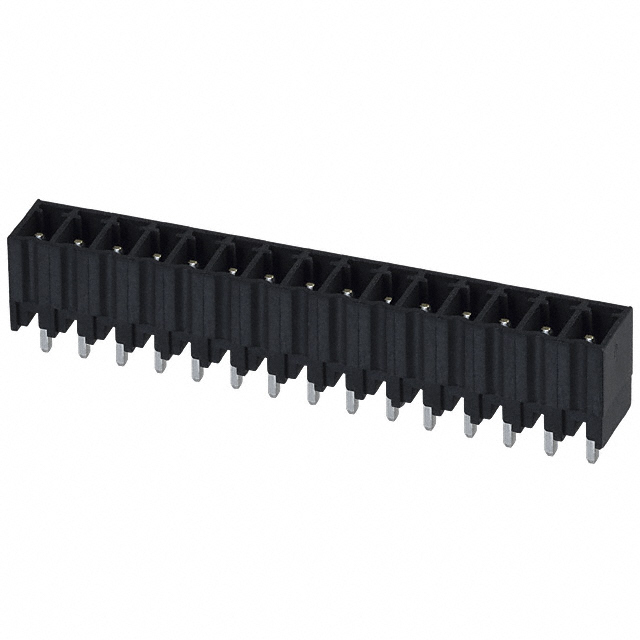

TERM BLOCK HDR 15POS VERT 3.5MM

Deep-Dive with AI

Search across all available documentation for this part.

0393530015

Obsolete

Molex

TERM BLOCK HDR 15POS VERT 3.5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0393530015

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.4 mm
Contact Tail Length	0.134 in
Current - UL	10 A
Header Orientation	Vertical
Housing Material	Polyamide (PA46), Nylon 4/6
Insulation Height	9.14 mm
Insulation Height	0.36 in
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	15
Operating Temperature	140 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	15
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

039353 Series

Part	Type	Contact Material	Positions Per Level	Termination Style	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Number of Levels	Contact Mating Finish	Housing Material	Contact Tail Length	Contact Tail Length	Color	Mounting Type	Current - UL	Header Orientation	Number of Positions	Operating Temperature	Voltage - UL	Number of Positions
Molex 0393530006	Header Male Pins Shrouded (4 Side)	Brass	6	Solder	3.5 mm	0.138 in	9.14 mm	0.36 in	1	Tin	Polyamide (PA46) Nylon 4/6	3.4 mm	0.134 in	Black	Through Hole	10 A	Vertical	6	140 °C	300 V
Molex 0393530002	Header Male Pins Shrouded (4 Side)	Brass	2	Solder	3.5 mm	0.138 in	9.14 mm	0.36 in	1	Tin	Polyamide (PA46) Nylon 4/6	3.4 mm	0.134 in	Black	Through Hole	10 A	Vertical	2	140 °C	300 V
Molex 0393530009	Header Male Pins Shrouded (4 Side)	Brass	9	Solder	3.5 mm	0.138 in	9.14 mm	0.36 in	1	Tin	Polyamide (PA46) Nylon 4/6	3.4 mm	0.134 in	Black	Through Hole	10 A	Vertical	9	140 °C	300 V
Molex 0393530015	Header Male Pins Shrouded (4 Side)	Brass	15	Solder	3.5 mm	0.138 in	9.14 mm	0.36 in	1	Tin	Polyamide (PA46) Nylon 4/6	3.4 mm	0.134 in	Black	Through Hole	10 A	Vertical	15	140 °C	300 V
Molex 0393530007	Header Male Pins Shrouded (4 Side)	Brass	7	Solder	3.5 mm	0.138 in	9.14 mm	0.36 in	1	Tin	Polyamide (PA46) Nylon 4/6	3.4 mm	0.134 in	Black	Through Hole	10 A	Vertical	7	140 °C	300 V
Molex 0393530013	Header Male Pins Shrouded (4 Side)	Brass	13	Solder	3.5 mm	0.138 in	9.14 mm	0.36 in	1	Tin	Polyamide (PA46) Nylon 4/6	3.4 mm	0.134 in	Black	Through Hole	10 A	Vertical	13	140 °C	300 V
Molex 0393530014	Header Male Pins Shrouded (4 Side)	Brass	14	Solder	3.5 mm	0.138 in	9.14 mm	0.36 in	1	Tin	Polyamide (PA46) Nylon 4/6	3.4 mm	0.134 in	Black	Through Hole	10 A	Vertical	14	140 °C	300 V
Molex 0393530008	Header Male Pins Shrouded (4 Side)	Brass	8	Solder	3.5 mm	0.138 in	9.14 mm	0.36 in	1	Tin	Polyamide (PA46) Nylon 4/6	3.4 mm	0.134 in	Black	Through Hole	10 A	Vertical	8	140 °C	300 V
Molex 0393530016	Header Male Pins Shrouded (4 Side)	Brass	16	Solder	3.5 mm	0.138 in	9.14 mm	0.36 in	1	Tin	Polyamide (PA46) Nylon 4/6	3.4 mm	0.134 in	Black	Through Hole	10 A	Vertical		140 °C	300 V	16
Molex 0393530004	Header Male Pins Shrouded (4 Side)	Brass	4	Solder	3.5 mm	0.138 in	9.14 mm	0.36 in	1	Tin	Polyamide (PA46) Nylon 4/6	3.4 mm	0.134 in	Black	Through Hole	10 A	Vertical	4	140 °C	300 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

039353 Series

15 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
