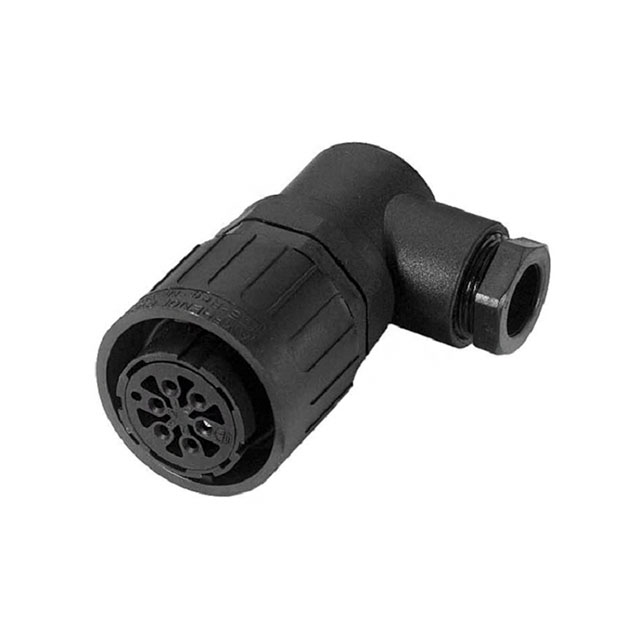

C01620F0051042

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 6P SILVER SCREW

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 6P SILVER SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	C01620F0051042

Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	16 A
Fastening Type	Bayonet Lock
Features	Cable Clamp
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	2
Termination	Screw
Voltage Rating	400 V

Part	Shell Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Primary Material	Contact Finish - Mating	Connector Type	Shell Size - Insert	Ingress Protection	Orientation	Current Rating (Amps)	Features	Number of Positions	Termination	Fastening Type
Amphenol Tuchel Industrial C01620F0051042	Polyamide (PA66) Nylon 6/6	400 V	100 °C	-40 °C	Free Hanging (In-Line) Right Angle	Plastic	Silver	Female Sockets Plug	2	IP65 - Dust Tight Water Resistant	Keyed	16 A	Cable Clamp	6	Screw	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 54.31

General part information

6 (5 + PE) Position Circular Connector Plug, Female Sockets Screw
