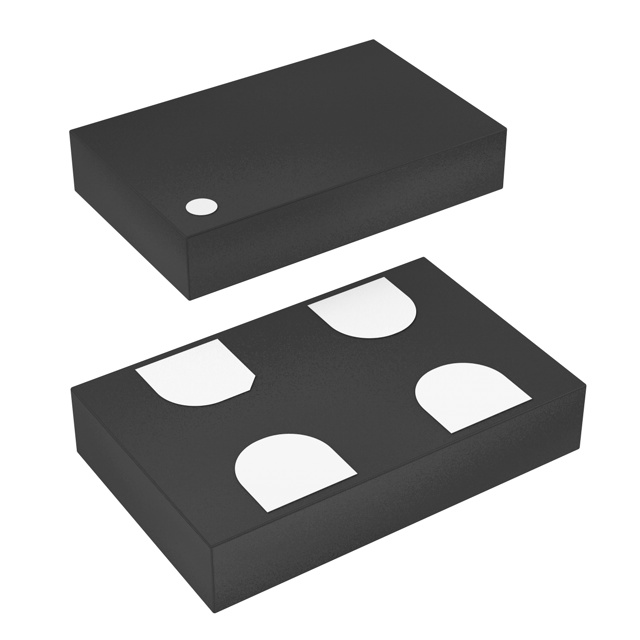

SIT1602BI-13-25S-25.000000_6

Active

SiTime

MEMS OSC XO 25.0000MHZ H/LV-CMOS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SIT1602BI-13-25S-25.000000_6

Active

SiTime

MEMS OSC XO 25.0000MHZ H/LV-CMOS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SIT1602BI-13-25S-25.000000_6

Base Resonator	MEMS
Current - Supply (Disable) (Max) [Max]	2.5 µA
Current - Supply (Max) [Max]	4.2 mA
Frequency	25 MHz
Frequency Stability	50 ppm
Function	Standby (Power Down)
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	HCMOS, LVCMOS
Package / Case	4-SMD, No Lead
Size / Dimension [x]	0.098 "
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in
Supplier Device Package	4-PQFN (2.5x2)
Type	XO (Standard)
Voltage - Supply	2.5 V

SIT1602 Series

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Base Resonator	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency Stability	Frequency	Output	Current - Supply (Max) [Max]	Current - Supply (Disable) (Max) [Max]	Voltage - Supply	Type	Mounting Type	Function	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Supply (Disable) (Max)
SiTime SIT1602AC-11-33E-25.000000	0.098 "	2 mm	2.5 mm	0.079 in	MEMS	0.8 mm	0.031 "	20 ppm	25 MHz	HCMOS LVCMOS	4.5 mA	4 mA	3.3 V	XO (Standard)	Surface Mount	Enable/Disable	-20 C	70 °C	4-PQFN (2.5x2)	4-SMD No Lead
SiTime SIT1602BI-71-YYS-20.000000	0.079 in	1.6 mm	2 mm	0.063 in	MEMS	0.8 mm	0.031 "	20 ppm	20 MHz	HCMOS LVCMOS	4.5 mA			XO (Standard)	Surface Mount	Standby (Power Down)	-40 °C	85 °C		4-SMD No Lead	3.63 V	1.62 V	4.3 µA
SiTime SIT1602AC-12-33E-33.330000	0.098 "	2 mm	2.5 mm	0.079 in	MEMS	0.8 mm	0.031 "	25 ppm	33.33 MHz	LVCMOS	4.5 mA		3.3 V	XO (Standard)	Surface Mount	Enable/Disable	-20 C	70 °C		4-SMD No Lead
SiTime SIT1602AC-11-33E-33.333330	0.098 "	2 mm	2.5 mm	0.079 in	MEMS	0.8 mm	0.031 "	20 ppm	33.33333 MHz	HCMOS LVCMOS	4.5 mA	4 mA	3.3 V	XO (Standard)	Surface Mount	Enable/Disable	-20 C	70 °C		4-SMD No Lead
SiTime SIT1602BI-72-18E-54.000000_6	0.079 in	1.6 mm	2 mm	0.063 in	MEMS	0.8 mm	0.031 "	25 ppm	54 MHz	HCMOS LVCMOS	4.1 mA	4 mA	1.8 V	XO (Standard)	Surface Mount	Enable/Disable	-40 °C	85 °C		4-SMD No Lead
SiTime SIT1602AC-12-33S-12.000000	0.098 "	2 mm	2.5 mm	0.079 in	MEMS	0.8 mm	0.031 "	25 ppm	12 MHz	LVCMOS	4.5 mA		3.3 V	XO (Standard)	Surface Mount	Standby (Power Down)	-20 C	70 °C	4-PQFN (2.5x2)	4-SMD No Lead
SiTime SIT1602BI-13-25S-25.000000_6	0.098 "	2 mm	2.5 mm	0.079 in	MEMS	0.8 mm	0.031 "	50 ppm	25 MHz	HCMOS LVCMOS	4.2 mA	2.5 µA	2.5 V	XO (Standard)	Surface Mount	Standby (Power Down)	-40 °C	85 °C	4-PQFN (2.5x2)	4-SMD No Lead
SiTime SIT1602AC-12-33E-65.000000	0.098 "	2 mm	2.5 mm	0.079 in	MEMS	0.8 mm	0.031 "	25 ppm	65 MHz	LVCMOS	4.5 mA		3.3 V	XO (Standard)	Surface Mount	Enable/Disable	-20 C	70 °C		4-SMD No Lead
SiTime SIT1602AC-12-33E-20.000000	0.098 "	2 mm	2.5 mm	0.079 in	MEMS	0.8 mm	0.031 "	25 ppm	20 MHz	LVCMOS	4.5 mA		3.3 V	XO (Standard)	Surface Mount	Enable/Disable	-20 C	70 °C		4-SMD No Lead
SiTime SIT1602BI-73-YYE-3.570000	0.079 in	1.6 mm	2 mm	0.063 in	MEMS	0.8 mm	0.031 "	50 ppm	3.57 MHz	HCMOS LVCMOS	4.5 mA	4.2 mA		XO (Standard)	Surface Mount	Enable/Disable	-40 °C	85 °C	4-PQFN (2x1.6)	4-SMD No Lead	3.63 V	1.62 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	1	$ 0.65
		10	$ 0.56
		50	$ 0.51
		100	$ 0.49
		500	$ 0.45
		1000	$ 0.43
		2500	$ 0.40
		5000	$ 0.39
		10000	$ 0.37

Description

General part information

SIT1602 Series

25 MHz XO (Standard) HCMOS, LVCMOS Oscillator 2.5V Standby (Power Down) 4-SMD, No Lead
