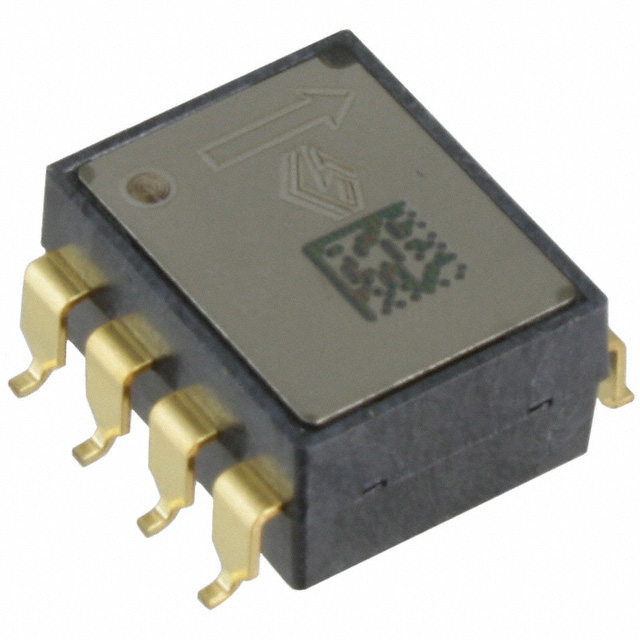

SCA61T-FAHH1G-1
ObsoleteMurata Power Solutions Inc.
SENSOR INCLINOMETER 30DEG 8SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCA61T-FAHH1G-1
ObsoleteMurata Power Solutions Inc.
SENSOR INCLINOMETER 30DEG 8SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SCA61T-FAHH1G-1 |
|---|---|
| Axis | X or Y |
| Bandwidth [Max] | 28 Hz |
| Bandwidth [Min] | 8 Hz |
| Interface | SPI |
| Measuring Range [Max] | 30 ° |
| Measuring Range [Min] | -30 ° |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SMD, L-Bend |
| Sensitivity | 4 mV/A |
| Voltage Rating [Max] | 5.25 V |
| Voltage Rating [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SCA61T Series
Sensor Inclinometer ±30° X or Y Axis 8 ~ 28Hz Bandwidth 8-SMD, L-Bend
Documents
Technical documentation and resources
