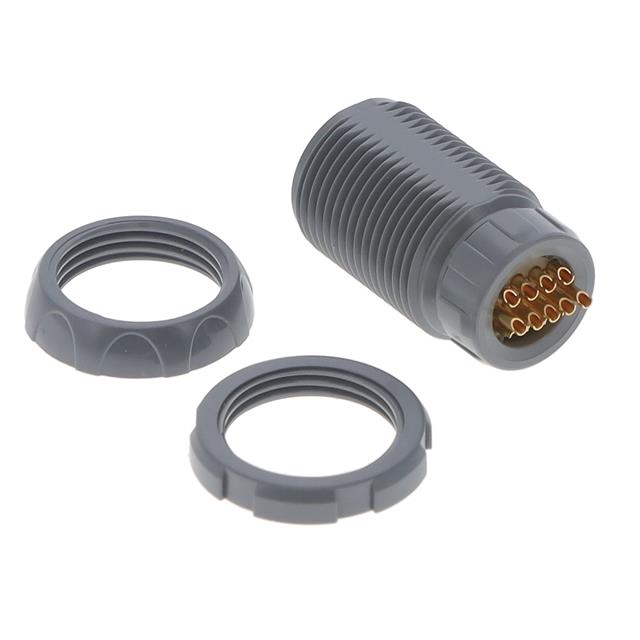

SKN.M13.GLLG

Active

LEMO

CONN RCPT FMALE 13P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SKN.M13.GLLG

Active

LEMO

CONN RCPT FMALE 13P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SKN.M13.GLLG

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Front and Rear Side Nut
Number of Positions	13
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-50 °C
Orientation	N
Primary Material	Plastic
Shell Material	Sulfone
Shell Size - Insert	M13
Shielding	Unshielded

SKN.M1 Series

Part	Orientation	Shell Material	Fastening Type	Mounting Feature	Connector Type	Shielding	Primary Material	Current Rating (Amps)	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions	Shell Size - Insert	Contact Finish - Mating	Ingress Protection	Applications	Mounting Type	Termination	Number of Positions
LEMO SKN.M13.GLLG	N	Sulfone	Push-Pull	Front and Rear Side Nut	Receptacle Female Sockets	Unshielded	Plastic	4 A	Polyetheretherketone (PEEK)	-50 °C	170 °C	Gray	13	M13	Gold	IP50	Automotive Industrial Medical Testing Equipment & Measurement
LEMO SKN.M10.GLVA	N	Sulfone	Push-Pull	Front and Rear Side Nut	Receptacle Female Sockets	Unshielded	Plastic	4.2 A	Polyetheretherketone (PEEK)	-50 °C	170 °C	Blue Gray	10	M10	Gold	IP50	Automotive Industrial Medical Testing Equipment & Measurement	Panel Mount Right Angle Through Hole	Solder
LEMO SKN.M13.GLMG	N	Sulfone	Push-Pull	Front and Rear Side Nut	Receptacle Female Sockets	Unshielded	Plastic	4 A	Polyetheretherketone (PEEK)	-50 °C	170 °C	Gray	13	M13	Gold	IP50	Automotive Industrial Medical Testing Equipment & Measurement		Crimp
LEMO SKN.M16.NLLN	N	Sulfone	Push-Pull	Front and Rear Side Nut	Receptacle Female Sockets	Unshielded	Plastic	3 A	Polyetheretherketone (PEEK)	-50 °C	170 °C	Black		M16	Gold	IP50	Automotive Industrial Medical Testing Equipment & Measurement			16
LEMO SKN.M18.GLLG	N	Sulfone	Push-Pull	Front and Rear Side Nut	Receptacle Female Sockets	Unshielded	Plastic	2.5 A	Polyetheretherketone (PEEK)	-50 °C	170 °C	Gray	18	M18	Gold	IP50	Automotive Industrial Medical Testing Equipment & Measurement
LEMO SKN.M10.GLNG	N	Sulfone	Push-Pull	Front and Rear Side Nut	Receptacle Female Sockets	Unshielded	Plastic	4.2 A	Polyetheretherketone (PEEK)	-50 °C	170 °C	Gray	10	M10	Gold	IP50	Automotive Industrial Medical Testing Equipment & Measurement	Panel Mount Through Hole	Solder
LEMO SKN.M13.GLVG	N	Sulfone	Push-Pull	Front and Rear Side Nut	Receptacle Female Sockets	Unshielded	Plastic	4 A	Polyetheretherketone (PEEK)	-50 °C	170 °C	Gray	13	M13	Gold	IP50	Automotive Industrial Medical Testing Equipment & Measurement	Panel Mount Right Angle Through Hole	Solder
LEMO SKN.M13.BLLB	N	Sulfone	Push-Pull	Front and Rear Side Nut	Receptacle Female Sockets	Unshielded	Plastic	4 A	Polyetheretherketone (PEEK)	-50 °C	170 °C	White	13	M13	Gold	IP50	Automotive Industrial Medical Testing Equipment & Measurement

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.42
		10	$ 31.89
		25	$ 30.51
		50	$ 29.53
		100	$ 28.54
		250	$ 26.97

Description

General part information

SKN.M1 Series

13 Position Circular Connector Receptacle, Female Sockets Solder Cup
