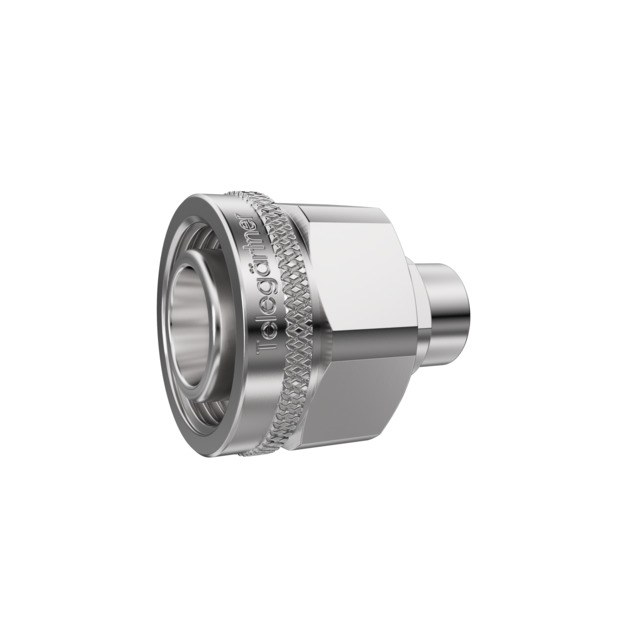

100027900

Active

Telegartner Inc

2.2-5 STRAIGHT PLUG SCREW

Search across all available documentation for this part.

Active

Telegartner Inc

2.2-5 STRAIGHT PLUG SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	100027900

Body Finish	Silver
Center Contact Plating	Silver
Connector Style	2.2/5
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	1000 VDC

Part	Body Finish	Shield Termination	Housing Color	Connector Style	Impedance	Frequency - Max [Max]	Connector Type	Center Contact Plating	Ingress Protection	Dielectric Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Contact Termination	Cable Group	Cable Group	Voltage Rating	Center Contact Material	Body Material
Telegartner Inc 100025466	White Bronze	Clamp	Silver	2.2/5	50 Ohms	3 GHz	Male Pin Plug	Silver	IP68 - Dust Tight Waterproof	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	85 °C	-40 °C	1	Crimp Solder
Telegartner Inc 100025465	White Bronze	Clamp	Silver	2.2/5	50 Ohms	5 GHz	Male Pin Plug	Silver	IP67 - Dust Tight Waterproof	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	90 °C	-55 °C	1	Crimp Solder	0.25 in	Flex
Telegartner Inc 100027900	Silver	Solder	Silver	2.2/5	50 Ohms	6000 MHz	Male Pin Plug	Silver	IP68 - Dust Tight Waterproof	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	90 °C	-55 °C	1	Solder			1000 VDC
Telegartner Inc 100025457	Silver	Solder	Silver	2.2/5	50 Ohms	6000 MHz	Male Pin Plug	Silver	IP68 - Dust Tight Waterproof	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	90 °C	-55 °C	1	Solder		RG-402	1000 VDC
Telegartner Inc 100025463	Silver	Solder	Silver	2.2/5	50 Ohms	6000 MHz	Male Pin Plug	Silver	IP68 - Dust Tight Waterproof	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	90 °C	-55 °C	1	Solder		RG-401		Brass	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2/5 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
