CS53L30-CWZR

Obsolete

Cirrus Logic Inc.

IC ADC/AUDIO 24BIT 16K 30WLCSP

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

IC ADC/AUDIO 24BIT 16K 30WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	CS53L30-CWZR

Data Interface	I2S
Mounting Type	Surface Mount
Number of Channels	4
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C

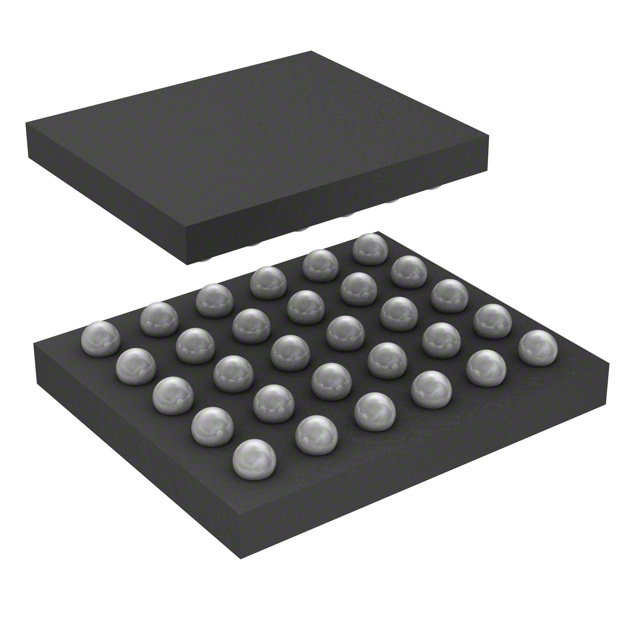

Package / Case	30-UFBGA, WLCSP
Resolution (Bits)	24 b
Sampling Rate (Per Second)	16k
Type	ADC, Audio
Voltage - Supply [Max]	1.89 V
Voltage - Supply [Min]	1.71 V
Voltage Supply Source	Single Supply

Part	Package / Case	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Sampling Rate (Per Second)	Data Interface	Voltage Supply Source	Resolution (Bits)	Number of Channels	Mounting Type	Supplier Device Package
Cirrus Logic Inc. CS53L30-CWZR	30-UFBGA WLCSP	-10 °C	158 °F	1.89 V	1.71 V	ADC Audio	16k	I2S	Single Supply	24 b	4	Surface Mount
Cirrus Logic Inc. CS53L30-CNZR	32-VFQFN Exposed Pad	-10 °C	158 °F	1.89 V	1.71 V	ADC Audio	16k	I2S	Single Supply	24 b	4	Surface Mount	32-QFN (5x5)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ADC, Audio 24 b 16k I2S

Technical documentation and resources

No documents available
