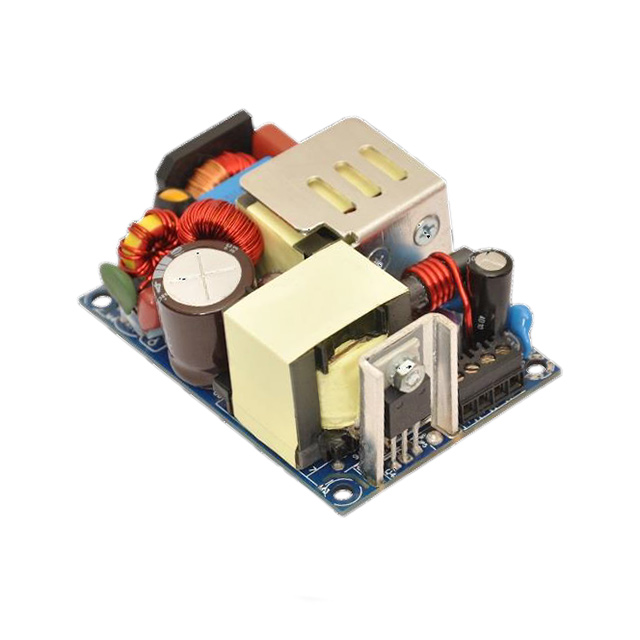

ABC120-1T30L
ObsoleteEOS Power India Private Ltd
AC/DC CONVERTER 30V 100/120W
Deep-Dive with AI
Search across all available documentation for this part.
ABC120-1T30L
ObsoleteEOS Power India Private Ltd
AC/DC CONVERTER 30V 100/120W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ABC120-1T30L |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 3.33 A |
| Efficiency | 91 % |
| Features | DC Input Capable, PFC, Standby Output, Universal Input, Adjustable Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 120 W, 100 W |
| Size / Dimension [x] | 3 " |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 30.1 mm |
| Size / Dimension [z] | 1.18 in |
| Type | Open Frame |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ABC120 Series
Open Frame AC DC Converters 1 Output 30V 85 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
