Q-0401T00051.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE JCK-JCK 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0401T00051.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE JCK-JCK 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0401T00051.5M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0401T0 Series

Part	2nd Connector Mounting Feature	1st Connector Mounting Type	Cable Type	Length	Length	Overall Impedance	1st Connector Mounting Feature	2nd Connector	Features	2nd Connector Mounting Type	1st Contact Gender	Frequency - Max [Max]	Style	2nd Contact Gender	Color	1st Connector	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-0401T0003012i	Bulkhead - Front Side Nut	Panel Mount	RG-174	12 "	304.8 mm	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack	Shielded	Panel Mount	Female	4 GHz	BNC to N-Type	Female	Black	BNC Jack
Amphenol Custom Cable Q-0401T0005018i	Bulkhead - Front Side Nut	Panel Mount	RG-316			50 Ohms	Bulkhead - Front Side Nut	N-Type Jack	Shielded	Panel Mount	Female	4 GHz	BNC to N-Type	Female	Copper	BNC Jack	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0401T0005084i	Bulkhead - Front Side Nut	Panel Mount	RG-316	84 in	2.1 m	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack	Shielded	Panel Mount	Female	4 GHz	BNC to N-Type	Female	Copper	BNC Jack			7 ft
Amphenol Custom Cable Q-0401T0005012i	Bulkhead - Front Side Nut	Panel Mount	RG-316	12 "	304.8 mm	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack	Shielded	Panel Mount	Female	4 GHz	BNC to N-Type	Female	Copper	BNC Jack
Amphenol Custom Cable Q-0401T0003001M	Bulkhead - Front Side Nut	Panel Mount	RG-174	39.4 in	1 m	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack	Shielded	Panel Mount	Female	4 GHz	BNC to N-Type	Female	Black	BNC Jack			3.3 ft
Amphenol Custom Cable Q-0401T0003060i	Bulkhead - Front Side Nut	Panel Mount	RG-174	5 '	1.5 m	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack	Shielded	Panel Mount	Female	4 GHz	BNC to N-Type	Female	Black	BNC Jack			5 ft
Amphenol Custom Cable Q-0401T0005001M	Bulkhead - Front Side Nut	Panel Mount	RG-316	39.4 in	1 m	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack	Shielded	Panel Mount	Female	4 GHz	BNC to N-Type	Female	Copper	BNC Jack			3.3 ft
Amphenol Custom Cable Q-0401T00051.5M	Bulkhead - Front Side Nut	Panel Mount	RG-316	59.1 in	1.5 m	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack	Shielded	Panel Mount	Female	4 GHz	BNC to N-Type	Female	Copper	BNC Jack			4.9 ft
Amphenol Custom Cable Q-0401T0005003M	Bulkhead - Front Side Nut	Panel Mount	RG-316	118.1 in	3 m	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack	Shielded	Panel Mount	Female	4 GHz	BNC to N-Type	Female	Copper	BNC Jack			9.8 '
Amphenol Custom Cable Q-0401T0003003M	Bulkhead - Front Side Nut	Panel Mount	RG-174	118.1 in	3 m	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack	Shielded	Panel Mount	Female	4 GHz	BNC to N-Type	Female	Black	BNC Jack			9.8 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 71.42
		25	$ 66.53
		50	$ 61.63
		100	$ 57.44
		250	$ 53.95

Description

General part information

Q-0401T0 Series

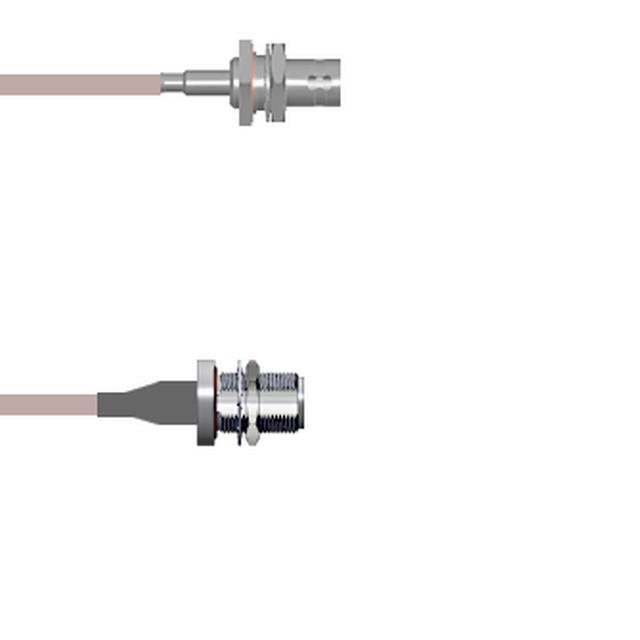

Cable Assembly Coaxial BNC to N-Type RG-316 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
