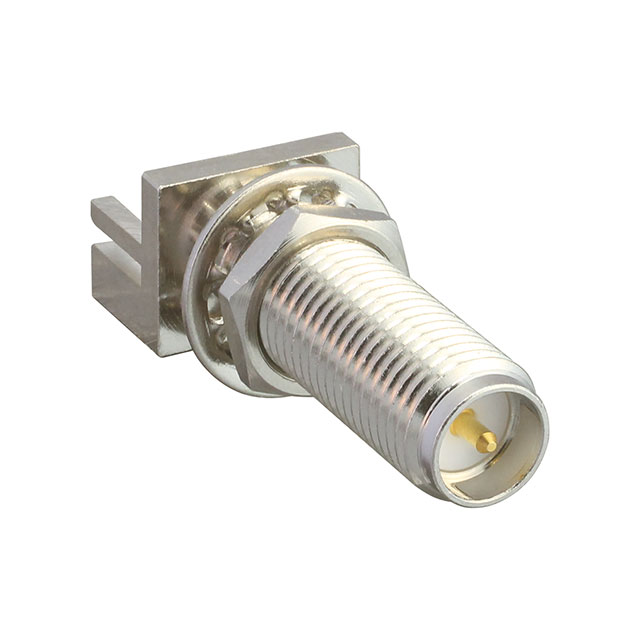

CONREVSMA003.031-L

Active

TE Connectivity Linx

CONN RPSMA RCPT STR 50OHM EDGEMT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CONREVSMA003.031-L

Active

TE Connectivity Linx

CONN RPSMA RCPT STR 50OHM EDGEMT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CONREVSMA003.031-L

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Panel Mount, End Launch, Board Edge
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

CONREVSM Series

Part	Cable Group	Center Contact Material	Includes	Center Contact Plating	Shield Termination	Housing Color	Voltage Rating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Contact Termination	Body Finish	Connector Type	Mating Cycles	Dielectric Material	Frequency - Max [Max]	Number of Ports	Connector Style	Impedance	Mounting Feature
TE Connectivity Linx CONREVSMA012-R178	RG-178	Beryllium Copper	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator	Gold	Crimp	Silver	250 VDC	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C	Brass	Solder	Nickel	Female Socket Plug	500	Polytetrafluoroethylene (PTFE)	12.4 GHz	1	RP-SMA	50 Ohms
TE Connectivity Linx CONREVSMA002-SMD		Beryllium Copper		Gold	Solder	Silver		Surface Mount Right Angle	-65 ░C	165 °C	Brass	Solder	Nickel	Male Pin Receptacle	500	Polytetrafluoroethylene (PTFE)	12.4 GHz	1	RP-SMA	50 Ohms
TE Connectivity Linx CONREVSMA006.062-G		Brass	1 Connector 1 Lockwasher 1 Nut	Gold	Solder	Gold		Board Edge End Launch Panel Mount	-65 ░C	165 °C	Brass	Solder	Gold	Male Pin Receptacle	500	Polytetrafluoroethylene (PTFE)	18 GHz	1	RP-SMA	50 Ohms	Bulkhead - Front Side Nut
TE Connectivity Linx CONREVSMA005-R178	RG-178	Brass	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator 1 Lockwasher 1 Sleeve 1 Spacer 2 Nuts	Gold	Crimp	Silver	250 VDC		-65 ░C	165 °C	Brass	Solder	Nickel	Male Pin Receptacle	500	Polytetrafluoroethylene (PTFE)	12.4 GHz	1	RP-SMA	50 Ohms	Bulkhead - Front Side Nut
TE Connectivity Linx CONREVSMA011	RG-174	Brass		Gold	Crimp	Silver	335 V	Free Hanging (In-Line)	-65 ░C	165 °C	Brass	Solder	Nickel	Male Pin Receptacle	500	Polytetrafluoroethylene (PTFE)	18 GHz	1	RP-SMA	50 Ohms
TE Connectivity Linx CONREVSMA003.062-G		Brass		Gold	Solder	Gold		Board Edge End Launch	-65 ░C	165 °C	Brass	Solder	Gold	Male Pin Receptacle	500	Polytetrafluoroethylene (PTFE)	18 GHz	1	RP-SMA	50 Ohms
TE Connectivity Linx CONREVSMA015-R178	RG-178	Beryllium Copper	1 Connector 1 Contact 1 Gasket 1 Heat Shrink 1 Lockwasher 1 Nut 1 Spacer 1 Support	Gold	Crimp	Silver	250 VDC		-65 ░C	165 °C	Brass	Solder	Nickel	Male Pin Receptacle	500	Polytetrafluoroethylene (PTFE)	12.4 GHz	1	RP-SMA	50 Ohms	Bulkhead - Rear Side Nut
TE Connectivity Linx CONREVSMA014-R58	RG-58	Brass		Gold	Crimp	Silver	500 V		-65 ░C	165 °C	Brass	Solder	Nickel	Male Pin Receptacle	500	Polytetrafluoroethylene (PTFE)	12.4 GHz	1	RP-SMA	50 Ohms	Bulkhead - Front Side Nut
TE Connectivity Linx CONREVSMA003.031-L		Beryllium Copper	1 Connector 1 Lockwasher 1 Nut	Gold	Solder	Silver		Board Edge End Launch Panel Mount	-65 ░C	165 °C	Brass	Solder	Nickel	Male Pin Receptacle	500	Polytetrafluoroethylene (PTFE)	12.4 GHz	1	RP-SMA	50 Ohms	Bulkhead - Front Side Nut
TE Connectivity Linx CONREVSMA014	RG-174	Brass		Gold	Crimp	Silver	335 V		-65 ░C	165 °C	Brass	Solder	Nickel	Male Pin Receptacle	500	Polytetrafluoroethylene (PTFE)	12.4 GHz	1	RP-SMA	50 Ohms	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.11

Description

General part information

CONREVSM Series

RP-SMA Connector Receptacle, Male Pin 50 Ohms Board Edge, End Launch; Panel Mount Solder
