RTS710ND2S03
ActiveAmphenol Sine Systems Corp

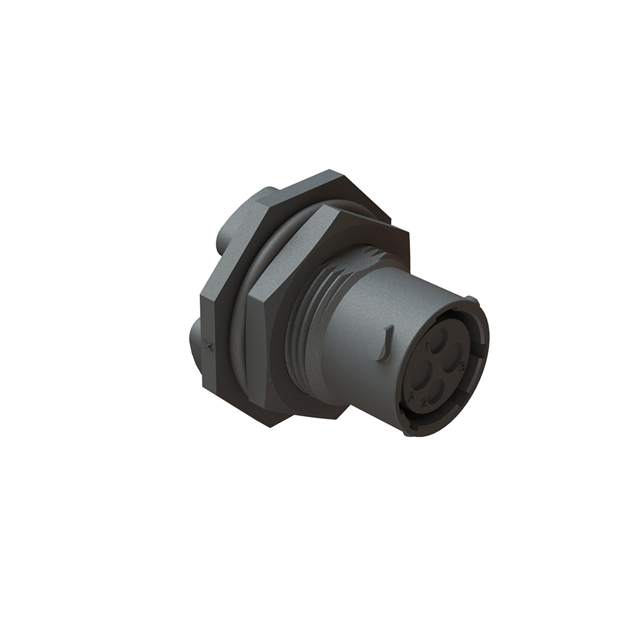

CONN RCPT FMALE 4POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
RTS710ND2S03
ActiveAmphenol Sine Systems Corp
CONN RCPT FMALE 4POS GOLD SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS710ND2S03 |
|---|---|
| Applications | Instrumentation, Automation, Transportation, Marine, Telecom, Industrial |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A, 7.5 A |
| Fastening Type | Bayonet Lock |
| Features | Board Guide |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Plastic |
| Shell Size - Insert | 10-2 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 500 VAC |
RTS710 Series
| Part | Material Flammability Rating | Connector Type | Type | Features | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Size | Mounting Feature | Note | Includes | Shell Size - Insert | Contact Shape | Insert Material | Contact Type | Shielding | Orientation | Housing Color | Number of Positions | Ingress Protection | Current Rating (Amps) | Applications | Termination | Contact Material | Contact Finish - Mating | Mounting Type | Primary Material | Color | Voltage Rating | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | UL94 V-0 | Receptacle Housing | For Male Pins | Backshell | Bayonet Lock | 125 °C | -40 °C | 20 | Bulkhead - Front Side Nut | Contacts Not Included | 1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal | 10-6 | Circular | Thermoplastic | Crimp | Unshielded | N | Black | 6 | IP67 IP69K | ||||||||||
Amphenol Sine Systems Corp | UL94 V-0 | Receptacle Housing | For Female Sockets | Bayonet Lock | 125 °C | -40 °C | 16 | Bulkhead - Front Side Nut | Contacts Not Included | 1 Connector 1 Gasket 1 Nut 1 O-Ring | 10-4 | Circular | Thermoplastic | Crimp | Unshielded | N | Black | 4 | IP67 IP69K | |||||||||||
Amphenol Sine Systems Corp | UL94 V-0 | Receptacle Female Sockets | Board Guide | Bayonet Lock | 125 °C | -40 °C | Bulkhead - Front Side Nut | 10-2 | Thermoplastic | Unshielded | N | 4 | IP67 IP69K | 7.5 A 13 A | Automation Industrial Instrumentation Marine Telecom Transportation | Solder | Copper Alloy | Gold | Panel Mount Through Hole | Plastic | Black | 500 VAC | ||||||||
Amphenol Sine Systems Corp | UL94 V-0 | Receptacle Housing | For Male Pins | Backshell | Bayonet Lock | 125 °C | -40 °C | Bulkhead - Front Side Nut | Contacts Not Included | 1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal | 10-2 | Circular | Thermoplastic | Crimp | Unshielded | N | Black | 4 | IP67 IP69K | 16 (2) 20 (2) | ||||||||||
Amphenol Sine Systems Corp | UL94 V-0 | Receptacle Housing | For Male Pins | Bayonet Lock | 125 °C | -40 °C | Bulkhead - Front Side Nut | Contacts Not Included | 1 Connector 1 Gasket 1 Nut 1 O-Ring | 10-2 | Circular | Thermoplastic | Crimp | Unshielded | N | Black | 4 | IP67 IP69K | 16 (2) 20 (2) | |||||||||||
Amphenol Sine Systems Corp | UL94 V-0 | Receptacle Housing | For Female Sockets | Bayonet Lock | 125 °C | -40 °C | 20 | Bulkhead - Front Side Nut | Contacts Not Included | 1 Connector 1 Gasket 1 Nut 1 O-Ring | 10-6 | Circular | Thermoplastic | Crimp | Unshielded | N | Black | 6 | IP67 IP69K | |||||||||||
Amphenol Sine Systems Corp | UL94 V-0 | Receptacle Housing | For Male Pins | Bayonet Lock | 125 °C | -40 °C | 16 | Bulkhead - Front Side Nut | Contacts Not Included | 1 Connector 1 Gasket 1 Nut 1 O-Ring | 10-3 | Circular | Thermoplastic | Crimp | Unshielded | N | Black | IP67 IP69K | ||||||||||||
Amphenol Sine Systems Corp | UL94 V-0 | Receptacle Housing | For Male Pins | Bayonet Lock | 125 °C | -40 °C | Bulkhead - Front Side Nut | Contacts Not Included | 1 Connector 1 Gasket 1 Nut 1 O-Ring | 10-3W3 | Circular | Thermoplastic | Crimp | Unshielded | N | Black | 6 | IP67 IP69K | Plastic | 16 (3) 20 (3) | ||||||||||
Amphenol Sine Systems Corp | UL94 V-0 | Receptacle Housing | For Female Sockets | Bayonet Lock | 125 °C | -40 °C | Bulkhead - Front Side Nut | Contacts Not Included | 1 Connector 1 Gasket 1 Nut 1 O-Ring | 10-3W3 | Circular | Thermoplastic | Crimp | Unshielded | N | Black | 6 | IP67 IP69K | Plastic | 16 (3) 20 (3) | ||||||||||
Amphenol Sine Systems Corp | UL94 V-0 | Receptacle Housing | For Male Pins | Bayonet Lock | 125 °C | -40 °C | 20 | Bulkhead - Front Side Nut | Contacts Not Included | 1 Connector 1 Gasket 1 Nut 1 O-Ring | 10-6 | Circular | Thermoplastic | Crimp | Unshielded | N | Black | 6 | IP67 IP69K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.75 | |
| 10 | $ 15.09 | |||
| 25 | $ 14.14 | |||
| 50 | $ 13.47 | |||
| 100 | $ 12.82 | |||
| 300 | $ 11.87 | |||
| 500 | $ 11.45 | |||
Description
General part information
RTS710 Series
4 Position Circular Connector Receptacle, Female Sockets Solder
