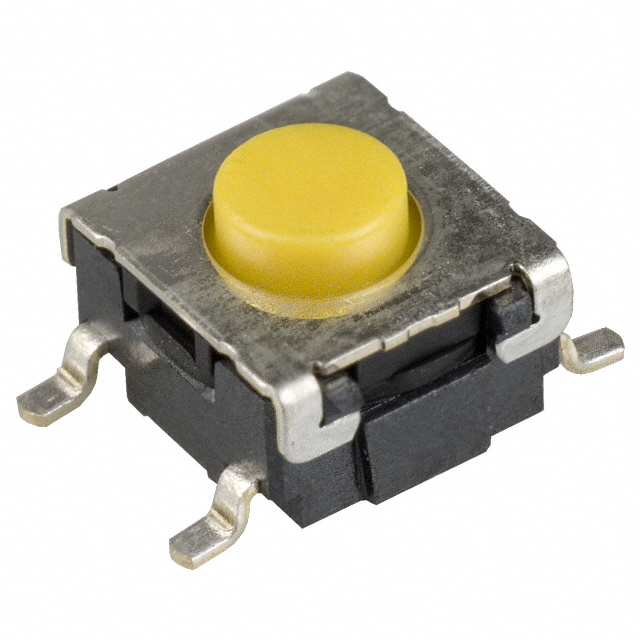

B3S-1002
ActiveOmron Electronics Inc-EMC Div
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Search across all available documentation for this part.
B3S-1002
ActiveOmron Electronics Inc-EMC Div
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B3S-1002 |
|---|---|
| Actuator Height off PCB, Vertical [z] | 4.3 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 24 VDC |
| Features | Sealed - Fully |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 300000 Cycles |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.75 | |
| 10 | $ 0.61 | |||
| 25 | $ 0.56 | |||
| 100 | $ 0.50 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.43 | |||
| 1000 | $ 0.40 | |||
| 2500 | $ 0.37 | |||
| 5000 | $ 0.34 | |||
Description
General part information
B3S Series
Tactile Switch SPST-NO Top Actuated Surface Mount
