PSAF10R-050QA-R
ActivePhihong USA

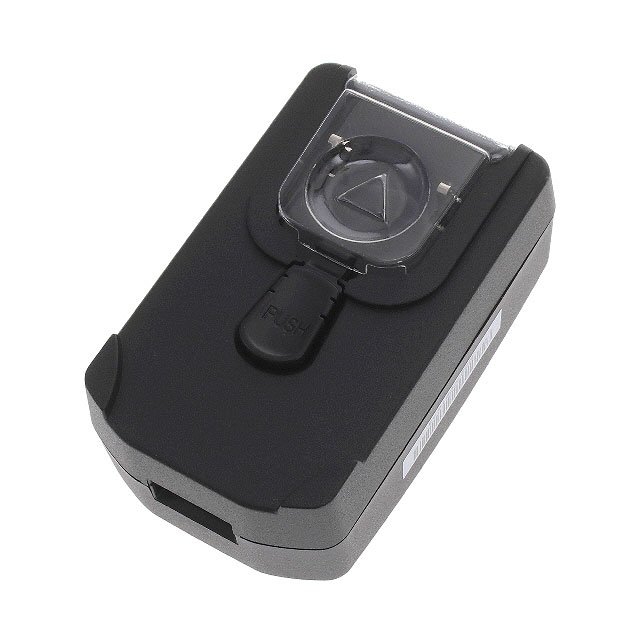

AC/DC WALL MOUNT ADAPTER 5V 10W
Deep-Dive with AI
Search across all available documentation for this part.
PSAF10R-050QA-R
ActivePhihong USA
AC/DC WALL MOUNT ADAPTER 5V 10W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PSAF10R-050QA-R |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, KC, PSE, AS/NZS, BSMI, IEC, CCC, PSB, EAC |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Sold Separately) |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 10 W |
| Region Utilized | International |
| Size / Dimension [x] | 2.98 " |
| Size / Dimension [x] | 75.8 mm |
| Size / Dimension [y] | 1.79 " |
| Size / Dimension [y] | 45.5 mm |
| Size / Dimension [z] | 33.1 mm |
| Size / Dimension [z] | 1.3 " |
| Standard Number | 62368-1, 55022, TP TC020, GB4943.1-2011, GB/T9254-2008, 60950-1, GB17625.1-2012, CNS13438, CNS14336-1, CNS15663, TP TC004 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.59 | |
| 10 | $ 7.90 | |||
| 25 | $ 7.43 | |||
| 50 | $ 7.20 | |||
| 100 | $ 7.00 | |||
| 250 | $ 6.81 | |||
| 500 | $ 6.38 | |||
| 1000 | $ 6.11 | |||
Description
General part information
PSAF10 Series
5V 10 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
Documents
Technical documentation and resources
No documents available
