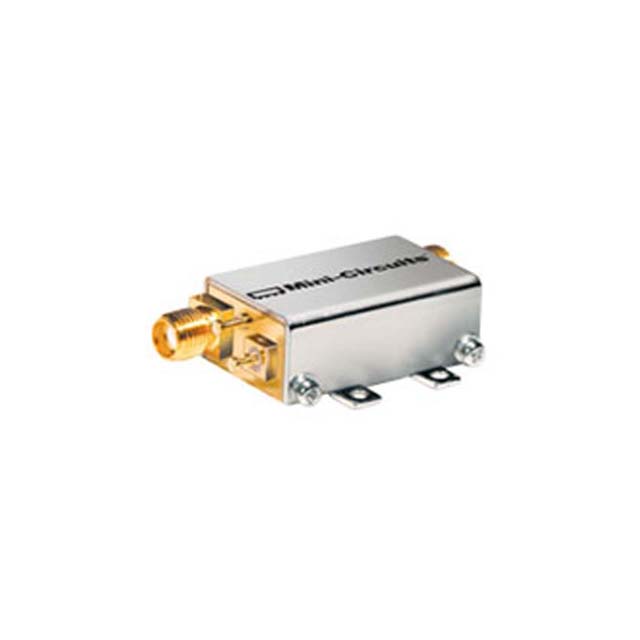

ZX60-2531MA-S+

Active

MINI-CIRCUITS

IC AMP CELLULAR 500MHZ-2.5GHZ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZX60-2531MA-S+

Active

MINI-CIRCUITS

IC AMP CELLULAR 500MHZ-2.5GHZ

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZX60-2531MA-S+

Current - Supply	102 mA
Frequency [Max]	2500 GHz
Frequency [Min]	500 MHz
Gain	37 dB
Mounting Type	Chassis Mount
Noise Figure	3.1 dB
P1dB	19 dBm
Package / Case	Module, SMA Connectors
RF Type	PCN, Cellular
Test Frequency	500 MHz
Voltage - Supply [Max]	5 V
Voltage - Supply [Min]	2.8 V

ZX60 Series

Part	Current - Supply	Package / Case	P1dB	Frequency [Max]	Frequency [Min]	Mounting Type	Test Frequency	RF Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Gain	Noise Figure	Test Frequency [Max]	Test Frequency [Min]	Voltage - Supply	Current - Supply [Min]	Current - Supply [Max]
MINI-CIRCUITS ZX60-53LN+	80 mA	Module SMA Connectors	19.5 dBm	5 GHz	500 MHz	Chassis Mount	4 GHz	General Purpose	7 V	4.9 V	23.9 dB	1.9 dB
MINI-CIRCUITS ZX60-14012L-S+	62 mA	Module SMA Connectors	11 dBm	14 GHz	300 kHz	Chassis Mount		General Purpose			12 dBi	5.5 dB	14 GHz	300 kHz	12 VDC
MINI-CIRCUITS ZX60-06183LN+	64 mA	Module SMA Connectors	12 dBm	18 GHz	6 GHz	Chassis Mount		Radar	7 V	4.9 V	25.2 dB	2 dB	12 GHz	8 GHz
MINI-CIRCUITS ZX60-24A-S+	270 mA	Module SMA Connectors	19.4 dBm			Chassis Mount	18 GHz	DBS Radar			24.4 dB	7.2 dBm
MINI-CIRCUITS ZX60-153LN-S+	82 mA	Module SMA Connectors	16.5 dB			Chassis Mount	2 GHz	LTE Radar UMTS WiFi WiMax WLAN			14.9 dB	3.6 dB			12 VDC
MINI-CIRCUITS ZX60-2531MA-S+	102 mA	Module SMA Connectors	19 dBm	2500 GHz	500 MHz	Chassis Mount	500 MHz	Cellular PCN	5 V	2.8 V	37 dB	3.1 dB
MINI-CIRCUITS ZX60-83LN12+	77 mA	Module SMA Connectors	20.7 dBm	8 GHz	500 MHz	Chassis Mount	2 GHz	LTE Radar WiFi WiMax WLAN	13 V	11 V	18 dBi	2.3 dB
MINI-CIRCUITS ZX60-100VH+		Module SMA Connectors	30 dBm	100 MHz	300 kHz	Chassis Mount		General Purpose			36 dB	4 dB	100 MHz	300 kHz	12 VDC
MINI-CIRCUITS ZX60-83LN-S+		Module SMA Connectors	20.7 dBm	8 GHz	500 MHz	Chassis Mount	2 GHz	LTE Radar UMTS WiFi WiMax WLAN			19.2 dB	2.2 dB			5 V 6 V	60 mA	70 mA
MINI-CIRCUITS ZX60-183A-S+	277 mA	Module SMA Connectors	18.8 dB	18 GHz	6 GHz	Chassis Mount	16 GHz	DBS Radar				6.5 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 128.95
		10	$ 101.63
		25	$ 99.51

Description

General part information

ZX60 Series

RF Amplifier IC Cellular, PCN 500MHz ~ 2.5GHz
