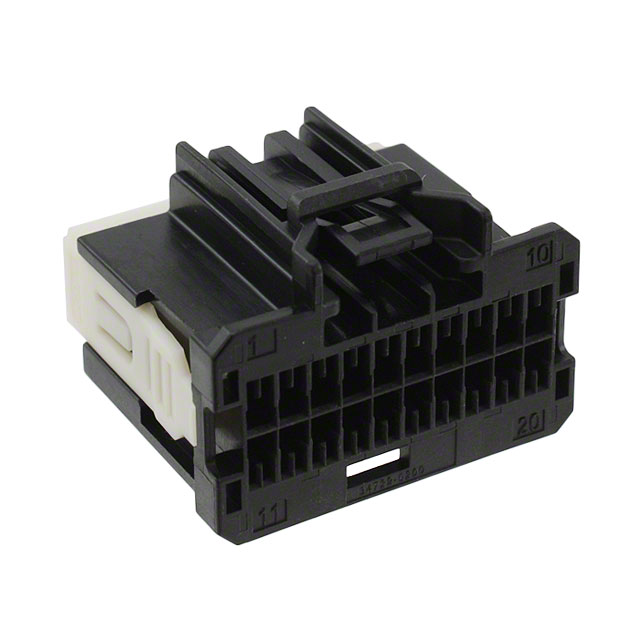

0347290200

Active

Molex

CONN WIRE TO BOARD RCP 20 POS 2.54MM CRIMP ST THRU-HOLE STAC64 TRAY

Search across all available documentation for this part.

Active

Molex

CONN WIRE TO BOARD RCP 20 POS 2.54MM CRIMP ST THRU-HOLE STAC64 TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	0347290200

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Polarizing Key
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

Part	Number of Rows	Mounting Type	Color	Note	Contact Termination	Pitch [x]	Pitch [x]	Insulation Material	Contact Type	Fastening Type	Features	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Row Spacing [x]	Row Spacing	Number of Positions
Molex 0347290162	2	Free Hanging (In-Line)	Brown	Contacts Not Included	Crimp	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	Latch Lock	Polarizing Key	Receptacle	-40 °C	105 ░C	16	0.1 in	2.54 mm
Molex 0347290200	2	Free Hanging (In-Line)	Black	Contacts Not Included	Crimp	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	Latch Lock	Polarizing Key	Receptacle	-40 °C	105 ░C		0.1 in	2.54 mm	20
Molex 0347290201	2	Free Hanging (In-Line)	Gray	Contacts Not Included	Crimp	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	Latch Lock	Polarizing Key	Receptacle	-40 °C	105 ░C		0.1 in	2.54 mm	20
Molex 0347290202	2	Free Hanging (In-Line)	Brown	Contacts Not Included	Crimp	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	Latch Lock	Polarizing Key	Receptacle	-40 °C	105 ░C		0.1 in	2.54 mm	20
Molex 0347290161	2	Free Hanging (In-Line)	Gray	Contacts Not Included	Crimp	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	Latch Lock	Polarizing Key	Receptacle	-40 °C	105 ░C	16	0.1 in	2.54 mm
Molex 0347290160	2	Free Hanging (In-Line)	Black	Contacts Not Included	Crimp	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	Female Socket	Latch Lock	Polarizing Key	Receptacle	-40 °C	105 ░C	16	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
