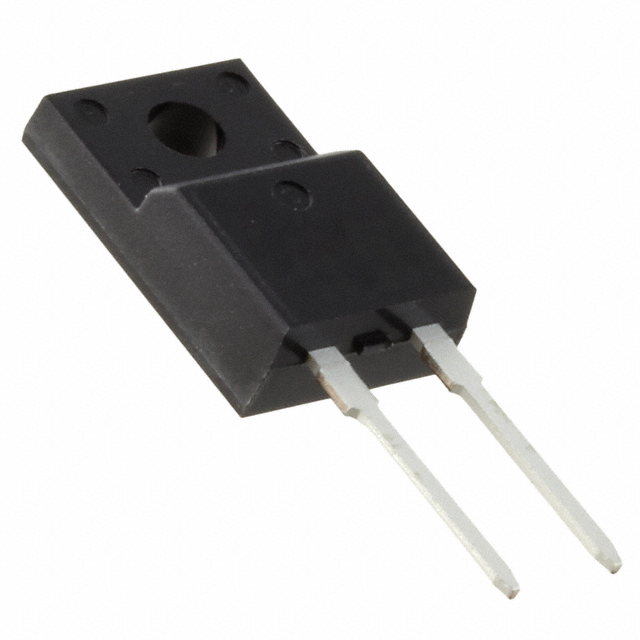

DFE10I600PM

Active

IXYS

DIODE GP 600V 10A TO220ACFP

Search across all available documentation for this part.

Active

IXYS

DIODE GP 600V 10A TO220ACFP

Technical Specifications

Parameters and characteristics for this part

Specification	DFE10I600PM

Current - Average Rectified (Io)	10 A
Current - Reverse Leakage @ Vr	20 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-220-2 Full Pack, Isolated Tab
Reverse Recovery Time (trr)	35 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-220ACFP
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.5 V

Part	Supplier Device Package	Reverse Recovery Time (trr)	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Speed	Package / Case	Current - Reverse Leakage @ Vr	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]
IXYS DFE10I600PM	TO-220ACFP	35 ns	Standard	150 °C	-55 °C	1.5 V	10 A	200 mA 500 ns	TO-220-2 Full Pack Isolated Tab	20 µA	Through Hole	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 600 V 10A Through Hole TO-220ACFP
