0190130026

Active

Molex

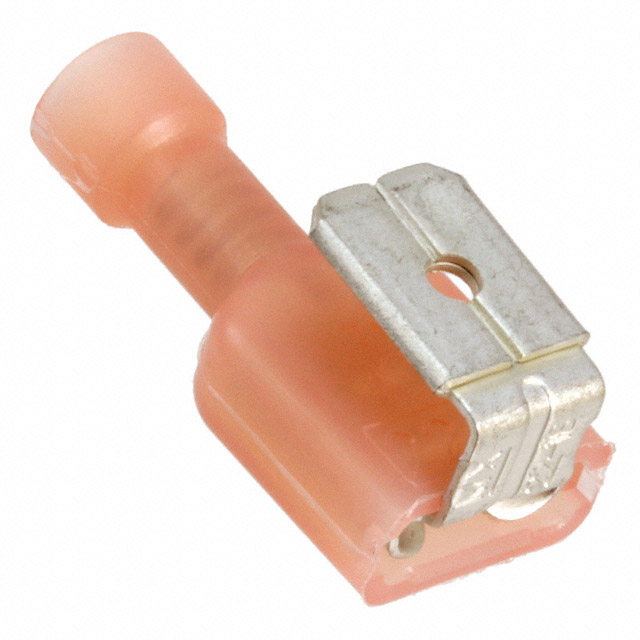

CONN QC RCPT/TAB 18-22AWG 0.250

Search across all available documentation for this part.

Active

Molex

CONN QC RCPT/TAB 18-22AWG 0.250

Technical Specifications

Parameters and characteristics for this part

Specification	0190130026

Color	Red
Contact Finish	Tin
Contact Material	Brass
Gender	Female, Male
Insulation	Fully Insulated
Insulation Diameter [diameter]	0.138 in
Insulation Diameter [diameter]	3.51 mm
Length - Overall [x]	0.86 "
Length - Overall [x]	21.84 mm
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Stacked
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Insulation	Gender	Terminal Type	Tab Thickness	Tab Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Contact Material	Termination	Mounting Type	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Finish	Color	Tab Width	Tab Width	Insulation Diameter	Insulation Diameter	Tab Length	Tab Length	Tab Length
Molex 0190130026	Fully Insulated	Female Male	Stacked	0.032 in	0.81 mm	22 AWG	17.5 AWG	0.86 "	21.84 mm	Brass	Crimp	Free Hanging (In-Line)	0.138 in	3.51 mm	Tin	Red	6.35 mm	0.25 in
Molex 0190130029	Fully Insulated	Female Male	Stacked	0.032 in	0.81 mm			0.86 "	21.84 mm	Brass	Crimp	Free Hanging (In-Line)			Tin	Blue	6.35 mm	0.25 in	0.159 in	4.04 mm	9.4 mm	0.37 in
Molex 0190130005	Fully Insulated	Female Male	Stacked	0.032 in	0.81 mm			0.85 "	21.59 mm	Brass	Crimp	Free Hanging (In-Line)	0.165 "	4.19 mm	Tin	Blue	6.35 mm	0.25 in
Molex 0190130028	Fully Insulated	Female Male	Stacked	0.032 in	0.81 mm	22 AWG	17.5 AWG	0.94 in	23.88 mm	Brass	Crimp	Free Hanging (In-Line)	0.229 in	5.82 mm	Tin	Red	6.35 mm	0.25 in			0.31 in		7.87 mm
Molex 0190130031	Fully Insulated	Female Male	Stacked	0.032 in	0.81 mm			0.94 in	23.88 mm	Brass	Crimp	Free Hanging (In-Line)	0.259 in	6.58 mm	Tin	Blue	6.35 mm	0.25 in			0.31 in		7.87 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Female and Male 18-22 AWG Crimp Connector Fully Insulated
