112700
ActiveAmphenol RF

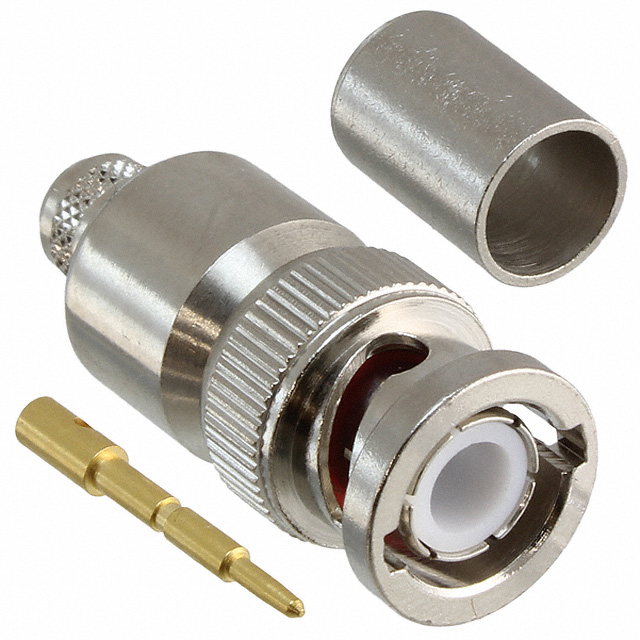

CONN BNC PLUG STR 50 OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 112700 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | LMR-300 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
1127 Series
| Part | Body Finish | Mating Cycles | Center Contact Material | Number of Ports | Fastening Type | Shield Termination | Dielectric Material | Contact Termination | Impedance | Connector Type | Voltage Rating | Housing Color | Center Contact Plating | Mounting Type | Body Material | Connector Style | Frequency - Max [Max] | Adapter Type | Adapter Series | Convert To (Adapter End) | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Style | Mounting Feature | Conversion Type | Convert From (Adapter End) | Cable Group | Insertion Loss | Features | For Use With/Related Products | Accessory Type | Color | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Nickel | 500 | Beryllium Copper | 1 | Bayonet Lock | Solder | Polytetrafluoroethylene (PTFE) | Solder | 75 Ohms | Female Socket Jack | 500 V | Silver | Gold | Through Hole Right Angle | Brass | BNC | 4 GHz | |||||||||||||||||
Amphenol RF | Nickel | Beryllium Copper | Bayonet Lock Snap-On | Polytetrafluoroethylene (PTFE) | 75 Ohms | Gold | Brass | 3 GHz | Plug to Jack | BNC to BNC | BNC Plug Male Pin | -65 ░C | 165 °C | 1 Connector 1 Lockwasher 1 Nut | Straight | Bulkhead | Same Series | BNC Jack Female Socket | ||||||||||||||||
Amphenol RF | Nickel | 500 | Beryllium Copper | 1 | Bayonet Lock | Crimp | Polytetrafluoroethylene (PTFE) | Crimp | 50 Ohms | Male Pin Plug | 500 V | Silver | Gold | Free Hanging (In-Line) | Brass | BNC | 4 GHz | 1 Connector 1 Contact 1 Ferrule | LMR-300 | 0.2 dB | ||||||||||||||
Amphenol RF | Nickel | Brass | BNC | Chain | BNC Plugs | Cap (Cover) | Silver | |||||||||||||||||||||||||||
Amphenol RF | Nickel | 500 | Phosphor Bronze | 1 | Bayonet Lock | Crimp | Polytetrafluoroethylene (PTFE) | Crimp | Female Socket Jack | 500 V | Silver | Gold | Brass | BNC | 4 GHz | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut 1 Sleeve | Bulkhead - Front Side Nut | 188A 316 RG-174 | 0.2 dB | |||||||||||||||
Amphenol RF | Nickel | 500 | Phosphor Bronze | 1 | Bayonet Lock | Crimp | Polytetrafluoroethylene (PTFE) | Crimp | 50 Ohms | Female Socket Jack | 500 V | Silver | Gold | Free Hanging (In-Line) | Brass | BNC | 4 GHz | 1 Connector 1 Contact 1 Ferrule | 213 214 225 302 393 87 8A 9 9A 9B RG-8 | 0.2 dB | ||||||||||||||
Amphenol RF | Nickel | 500 | Beryllium Copper | 2 | Bayonet Lock | Solder | Polypropylene (PP) | Solder | 50 Ohms | Female Socket Jack | 500 V | Silver White | Tin | Panel Mount Right Angle Through Hole | Zinc Die Cast | BNC | 4 GHz | -55 °C | 85 °C | Bulkhead | ||||||||||||||
Amphenol RF | Gold | 500 | Beryllium Copper | 1 | Bayonet Lock | Solder | Polytetrafluoroethylene (PTFE) | Solder | 75 Ohms | Female Socket Jack | 500 V | Gold | Gold | Board Edge End Launch Panel Mount | Brass | BNC | 4 GHz | 1 Connector 1 Lockwasher 1 Nut | Bulkhead - Front Side Nut | |||||||||||||||
Amphenol RF | Nickel | 500 | Brass | 1 | Bayonet Lock | Crimp | Polytetrafluoroethylene (PTFE) | Crimp Solder | 75 Ohms | Male Pin Plug | 500 V | Silver | Gold | Free Hanging (In-Line) | Brass | BNC | 4 GHz | 1 pcs 1 pcs 1 pcs 1 pcs 1 pcs | ||||||||||||||||
Amphenol RF | Nickel | 500 | Beryllium Copper | 2 | Bayonet Lock | Solder | Polypropylene (PP) | Solder | 75 Ohms | Female Socket Jack | 500 V | Silver | Gold | Panel Mount Right Angle Through Hole | Zinc Die Cast | BNC | 4 GHz | Bulkhead |
