CQ330A

Obsolete

Asahi Kasei Microdevices Corporation

SENSOR CURRENT HALL 20A AC/DC

Search across all available documentation for this part.

Obsolete

Asahi Kasei Microdevices Corporation

SENSOR CURRENT HALL 20A AC/DC

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	For Measuring	Mounting Type	Number of Channels	Package / Case	Package / Case	Package / Case	Accuracy	Voltage - Supply [Min]	Voltage - Supply [Max]	Linearity	Response Time	Sensor Type	Current - Supply (Max) [Max]	Frequency	Output	Supplier Device Package	Current - Sensing	Polarization	Sensitivity
Asahi Kasei Microdevices Corporation CQ330B	90 °C	-40 °C	AC/DC	Surface Mount	1	24-LSSOP	0.22 in 10 Leads	5.6 mm	0.5 %	4.5 V	5.5 V	±0.6%	0.5 µs	Hall Effect Open Loop	11 mA	1 MHz	Ratiometric Voltage	24-VSOP	21 A	Bidirectional	196 mV/A
Asahi Kasei Microdevices Corporation CQ330A	90 °C	-40 °C	AC/DC	Surface Mount	1	24-LSSOP	0.22 in 10 Leads	5.6 mm	0.5 %	4.5 V	5.5 V	±0.6%	0.5 µs	Hall Effect Open Loop	11 mA	1 MHz	Ratiometric Voltage	24-VSOP	31.8 A	Bidirectional	66 mV/A
Asahi Kasei Microdevices Corporation CQ330E	90 °C	-40 °C	AC/DC	Surface Mount	1	24-LSSOP	0.22 in 10 Leads	5.6 mm	0.5 %	4.5 V	5.5 V	±0.6%	0.5 µs	Hall Effect Open Loop	11 mA	1 MHz	Ratiometric Voltage	24-VSOP	20.5 A	Bidirectional	200 mV/A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

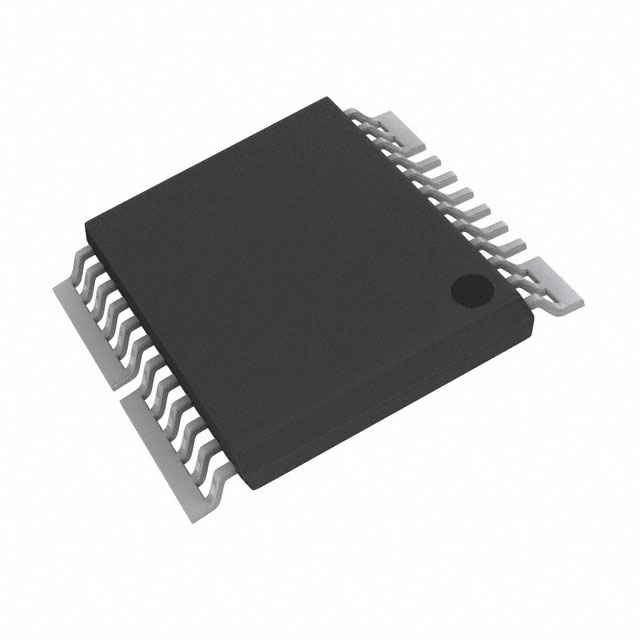

Current Sensor 31.8A 1 Channel Hall Effect, Open Loop Bidirectional 24-LSSOP (0.220", 5.60mm Width), 10 Leads
