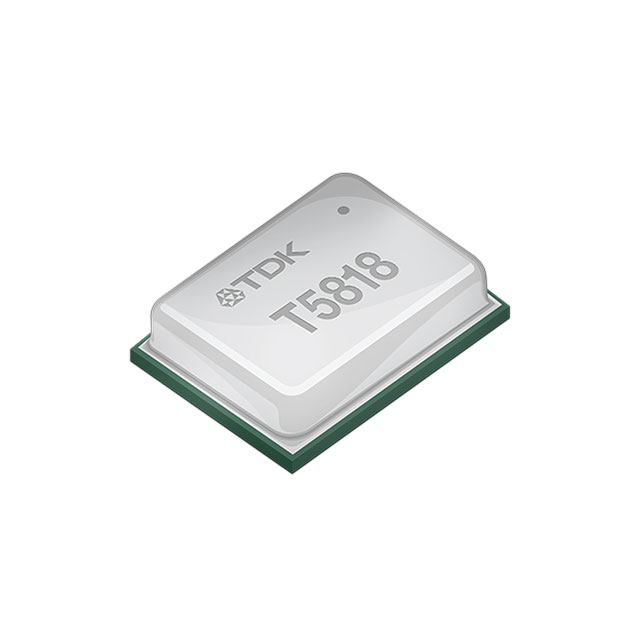

MMICT5818-00-012
EPCOS - TDK Electronics
MIC MEMS DIGITAL PDM OMNI -41DB
Deep-Dive with AI
Search across all available documentation for this part.
MMICT5818-00-012
EPCOS - TDK Electronics
MIC MEMS DIGITAL PDM OMNI -41DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MMICT5818-00-012 |
|---|---|
| Current - Supply | 220 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 40 Hz |
| Height (Max) | 0.98 mm |
| Height (Max) [Max] | 0.039 in |
| Output Type | PDM, Digital |
| Port Location | Bottom |
| S/N Ratio | 66 dB |
| Sensitivity | -41 dB |
| Shape | Rectangular |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.104 in |
| Size / Dimension [y] | 2.65 mm |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage - Rated | 1.8 V |
| Voltage Range [Max] | 3.63 V |
| Voltage Range [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.18 | |
| 10 | $ 0.98 | |||
| 25 | $ 0.91 | |||
| 50 | $ 0.88 | |||
| Digi-Reel® | 1 | $ 1.18 | ||
| 10 | $ 0.98 | |||
| 25 | $ 0.91 | |||
| 50 | $ 0.88 | |||
| Tape & Reel (TR) | 10000 | $ 0.88 | ||
Description
General part information
MMICT5818 Series
40 Hz ~ 20 kHz Digital, PDM Microphone MEMS (Silicon) 1.65 V ~ 3.63 V Omnidirectional (-41dB ±1dB @ 94dB SPL) Solder Pads
Documents
Technical documentation and resources
No documents available
